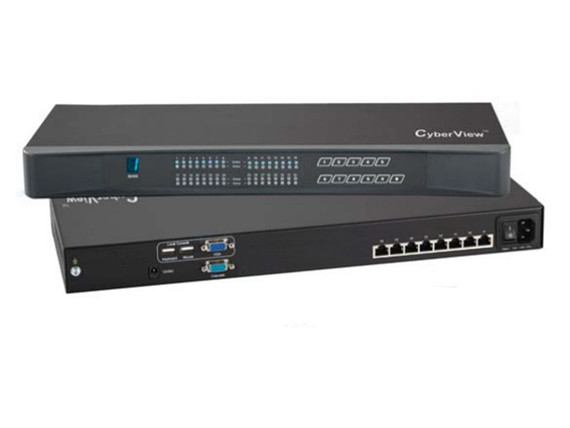

CyberView U-801

The U-801 is a 8-port Combo Cat6 KVM Switch.

See Detailed KVM Layout

U-801 Features & Benefits

• Combo Cat6 KVM in 1U form
• Up to 132 feet between your servers & KVM ports
• Cascade switches up to 8 levels & mix switches between Cat6 & Combo DB-15 KVM
• Supports HDMI, DisplayPort, DVI, VGA-USB & VGA PS/2 server interfaces
• Mix PS/2, USB & SUN with Multi-Platform switch capability
• Multi-lingual on screen display menu
• Advanced user profiles and configurable OSD hot key combinations
• Dual power with failover

U-801 Layout

U-801 Rear Diagram

U-801 Front Diagram

_TALK TO AN EXPERT

CyberView U-801 Highlights

•

  VGA, DVI, HDMI & DisplayPort sources
  from up to 130 feet away

  U-801 supports any combination of VGA, DVI, HDMI, DisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.

  Compare CAMs

•

  Multi-user access & management

  One local user can control 8 multi-platform servers. Expand up to 256 source computers simply by linking Cat6 Combo KVMs.

•

  Multi-platform support

  The CyberView Cat6 Combo KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.



•

  Channel selection options

  The CyberView U-801 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

•

  Hot pluggable, no software or drivers required

  Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.

•

  Easy Expansion
  (Cascading Units)

  Expand up to 256 source computers simply by linking Cat6 Combo KVM units using CBC-6 cables. The U-801 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of U-801 / U-1601 / U-3201 KVM switches.



•

  Redundant AC OR Optional DC power

  For mission critical applications, Cat6 Combo series now supports dual power inlets (Dual-AC). If one source fails, the U-801 will switch sources so as not to interrupt normal use of the connected servers. Alternatively, customers can also get DC power input integrated into the KVM.

•

  1U rack mount OR Integrate into rack drawer

  CyberView U-801 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.

U-801 Specifications

U-801 is also known as:

• U801
