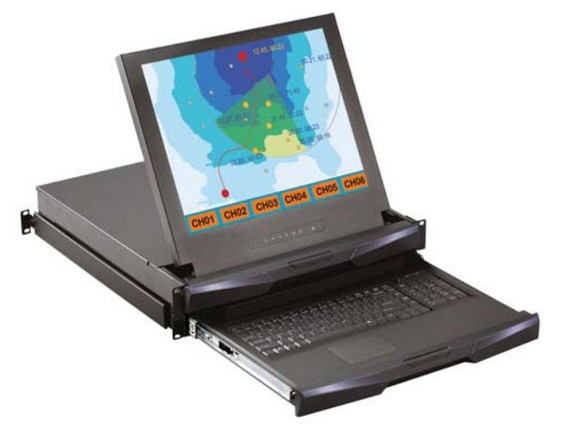

Cyberview RKP2419-801
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Replacement:
53916
$1,226.00
-->
2U Short-depth Rack Monitor Drawer 19" LCD
8-port PS/2 KVM Switch
8-port PS/2 KVM Switch
The Cyberview RKP2419-801 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.
The following keyboard options are available for the RKP2419-801:
RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems
RKP2419-801 Features:
- 2U dial slide 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- SUN Micro or MAC keyboard options available
- Short depth design of 480mm (18.9")
- New enhanced aesthetics with molded front handle
- 2 post rack mounting available
RKP2419-801 Specifications:
| Mechanical | |
| Height | 3.5 in (88 mm) |
| Width | 17.4 in (441.6 mm) |
| Depth | 18.1 in (480 mm) |
| Weight | 45.1 lbs. (20.5 kgs) |
| Package Dimensions | |
| Height | 7.5 in (190 mm) |
| Width | 23 in (585 mm) |
| Depth | 24.4 in (620 mm) |
| Weight | 54.6 lbs (24.8 kgs) |
| Environmental | |
| Operation Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 19" TFT |
| Resolution | 1280x1024 |
| Display color | 16.7 M |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° x 160° |
| Signal Input | VGA |
| Integrated USB KVM Switch | |
| KVM Port | 8 |
| Connector | DB-15 combo |
| Connectivity | PS/2 3-in-1 KVM cable, up to 6, 10 & 15 feet |
| Local Console | Nil for LCD console drawer version |
| Management | |
| OSD | English |
| Security | Password enable & disable |
| Expansion | Up to 64 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
