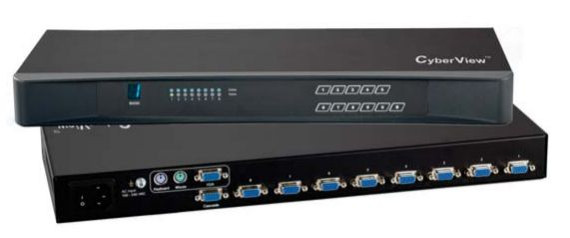

Cyberview CV-801
Product Code:
CV-801
Replacement:
5248
$279.00
PS/2 8-port KVM Switch from Cyberview
CV-801 Rear Diagram
CV-801 Front Diagram
The Cyberview CV-801 is KVM switch with features such as adjustable brackets , On screen display control and hotkey command to provide effective assistant for an administrator to control multiple PCs. The Cyberview CV Series provides cost effective for your limited IT budget over using sets of keyboard, monitor and mouse. Also, it will be space saving for your compact environment rack.
NOTE: Qty 8 CD-6 cables are included
CV-801 Features
- Support multiple keyboard languages.
- LED Display for easy status monitoring.
- Buzzer sound for switching port confirmation.
- Keyboard status restored when switching PCs.
- Provide Console PS/2 to PC serial mouse conversion
- Using Standard PS/2 Keyboard, VGA, PS/2 Mouse cable.
- No Dipswitch setting needed and auto detect cascade bank
- Built-in one extra daisy chain port and no waste any PC port.
- Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
- Support eight characters password protection and search PC server name.
- Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the other fully compatible MS mouse.
- Support DOS, Win3.X, Win95/98/98SE/2000/ME, WinNT, Netware, Unix, Linux
- Hot Plug - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
- No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
- Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds.
CV-801 Layout
CV-801 Rear Diagram
CV-801 Front DiagramCV-801 Package Contents
- (1) CV-801 KVM Switch
- (8) CD-6 6ft VGA PS/2 KVM cable - for KVM
- (1) 1U, 19" Rack mount kit w/ brackets & screws
- (1) Power adapter w/ US power cord - for KVM
Note, DC power excludes AC power cord. - (1) 2-Year manufacturer warranty
- *Please note, package contents may change with unit 'options'.
CV-801 Resources
CV-801 Datasheet (PDF)
CV-801 User Manual (PDF)
CV-801 Specifications
| Local console | |
| PC port | 8/16 |
| Console Port | - |
| PC Selection | OSD menue, hot key, push button |
| LED | 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) |
| On screen display control | Yes |
| Scan Intervals | 5~99sec |
| Keyboard and mouse emulation | PS/2 |
| VGA Resolution (Max.) | 1920x1440 |
| Cat5 Length | N/A |
| Bandwidth | 200Mhz |
| Cascade Level | 8 levels |
| PC Connection | 120/128 |
| Housing | Metal |
| KVM Switch Power Adapter | DC 12V |
CV-801 is also known as:
- 801
