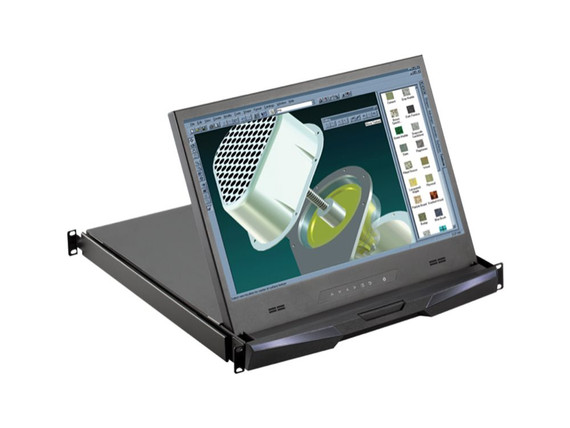

CyberView RP-W119
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,045.00
$964.00
-->
(You save
$81.00
)
1U 19" Widescreen LED LCD Rack Mount Monitor Drawer
The RP-W119 is a 1U 19" widescreen rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
Drawer Features and Display Benefits
- 1U 19" widescreen LCD drawer with HDMI / VGA input
- Sliding LCD allowing LCD to remain open when the rack door is closed
- Green LED-backlit panel technology
- Enhanced aesthetics with molded front panel and two point lock
- Short depth design of 460mm ( 18.1" )
Available options include
- HDMI 1.2 video input
- S-Video + Composite ( BNC )
- 3G / HD / SD-SDI Broadcast-grade input
- Audio input & output
- DC power: 12V/24V/48V/110~125V
For Multi-display control, DC power, SDI, and touchscreen options please call 1-877-586-6654.
RP-W119 Package Contents
- (1) RP-W119 Rack Monitor Drawer
- (1) 6ft VGA cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-W119 Resources
RP-W119 Brochure (PDF)
RP-W119 Manual (PDF)
RP-W119 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 18.1 in ( 44 x 442 x 460 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 28.5 lb ( 13 kg ) | ||||||
| Gross Weight | 37.4 lb ( 17 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 18.5 to 27.6 inch (470 to 700 mm) | ||||||
| Console Ports | |||||||
| Video Input | VGA + HDMI single link | ||||||
| Video Option | HDMI 1.2 / HDCP 1.1 S-Video ( 4-pin ) - NTSC & PAL Composite ( BNC ) - NTSC & PAL | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 19" | ||||||
| Backlight type | CCFL | ||||||
| Native resolution | 1440 x 900 | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 16.7 M | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 80/80/80/80 | ||||||
| Response time ( ms ) | 5 | ||||||
| Dot pitch ( mm ) | 0.2835 | ||||||
| Display area ( mm ) | 408.24H x 255.15V | ||||||
| Surface treatment | Haze 25%, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 50,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Input Impedance / Power level | 30Ω / 750mV | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Output Impedance / Power level | 30Ω / 2.8V | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
