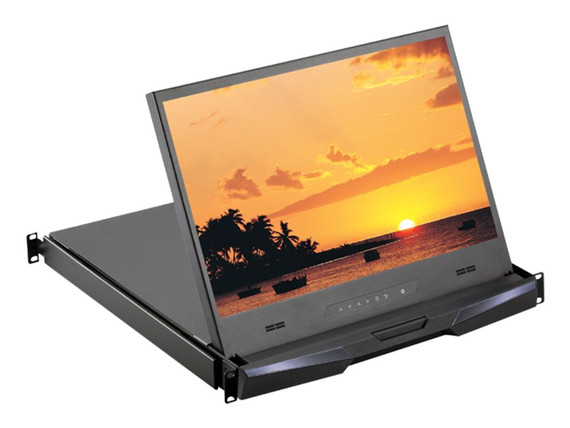

CyberView RP-HW119
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,865.00
$1,635.00
-->
(You save
$230.00
)
1U 19" High Brightness Widescreen LED LCD Display Drawer
The CyberView RP-HW119 is a High Brightness 1U 19" Widescreen LED Display Drawer with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP-HW119 Features and Dispaly Benefits
- 1U 19" widescreen LCD display drawer
- 1440 x 900 native resolution / 16.7M colors / 1000 cd/m² brightness
- HDMI + VGA video input
- Short depth design of 480mm
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
RP-HW119 Options
- HDMI 1.2 video input
- 3G / HD / SD-SDI Broadcast-grade input
- S-Video + Composite ( BNC )
- Audio Option: 2x 2W Speakers + aux input & output
- DC power : 12V / 24V / 48V / 125V
RP-HW119 Package Contents
- (1) RP-HW119 Rack Monitor Drawer
- (1) 6ft VGA cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-HW119 Resources
RP-HW119 Brochure (PDF)
RP-HW119 Manual (PDF)
Touch Screen Calibration Manual (PDF)
CyberView RP-HW119 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 18.1 in ( 44 x 442 x 460 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 28.5 lb ( 13 kg ) | ||||||
| Gross Weight | 37.4 lb ( 17 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 18.5 to 27.6 inch (470 to 700 mm) | ||||||
| Console Ports | |||||||
| Video Input | VGA + HDMI single link | ||||||
| Video Option | HDMI 1.2 / HDCP 1.1 S-Video ( 4-pin ) - NTSC & PAL Composite ( BNC ) - NTSC & PAL | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 19" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 1440 x 900 | ||||||
| Brightness (cd/m2) | 1000 | ||||||
| Colors | 16.7 M | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 80/80/80/80 | ||||||
| Response time ( ms ) | 5 | ||||||
| Dot pitch ( mm ) | 0.2835 | ||||||
| Display area ( mm ) | 408.24H x 255.15V | ||||||
| Surface treatment | Haze 25%, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Input Impedance / Power level | 30Ω / 750mV | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Output Impedance / Power level | 30Ω / 2.8V | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
1U 19" High Brightness Widescreen LED LCD Display Drawer
The CyberView RP-HW119 is a High Brightness 1U 19" Widescreen LED Display Drawer with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP-HW119 Features and Dispaly Benefits
- 1U 19" widescreen LCD display drawer
- 1440 x 900 native resolution / 16.7M colors / 1000 cd/m² brightness
- HDMI + VGA video input
- Short depth design of 480mm
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
RP-HW119 Options
- HDMI 1.2 video input
- 3G / HD / SD-SDI Broadcast-grade input
- S-Video + Composite ( BNC )
- Audio Option: 2x 2W Speakers + aux input & output
- DC power : 12V / 24V / 48V / 125V
RP-HW119 Package Contents
- (1) RP-HW119 Rack Monitor Drawer
- (1) 6ft VGA cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-HW119 Resources
RP-HW119 Brochure (PDF)
RP-HW119 Manual (PDF)
Touch Screen Calibration Manual (PDF)
CyberView RP-HW119 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 18.1 in ( 44 x 442 x 460 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 28.5 lb ( 13 kg ) | ||||||
| Gross Weight | 37.4 lb ( 17 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 18.5 to 27.6 inch (470 to 700 mm) | ||||||
| Console Ports | |||||||
| Video Input | VGA + HDMI single link | ||||||
| Video Option | HDMI 1.2 / HDCP 1.1 S-Video ( 4-pin ) - NTSC & PAL Composite ( BNC ) - NTSC & PAL | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 19" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 1440 x 900 | ||||||
| Brightness (cd/m2) | 1000 | ||||||
| Colors | 16.7 M | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 80/80/80/80 | ||||||
| Response time ( ms ) | 5 | ||||||
| Dot pitch ( mm ) | 0.2835 | ||||||
| Display area ( mm ) | 408.24H x 255.15V | ||||||
| Surface treatment | Haze 25%, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Input Impedance / Power level | 30Ω / 750mV | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Output Impedance / Power level | 30Ω / 2.8V | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
