CyberView RP-K1417
MSRP:
$2,112.00
$1,948.00
-->
(You save
$164.00
)

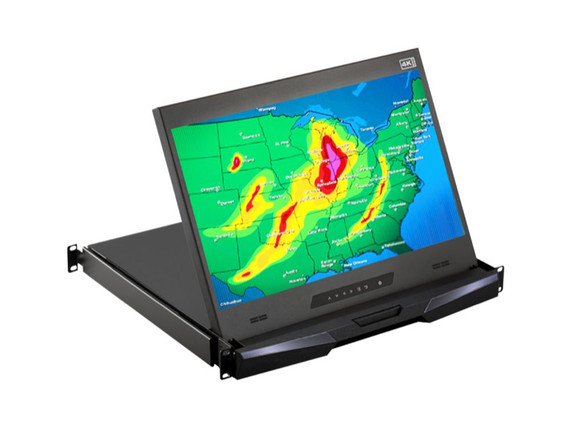

1U 17" Ultra Short Depth 4K Rack Monitor
The new CyberView RP-K1417 is a Ultra Short Depth 1U 17" 4K Rack Mount Monitor Drawer. RP-K1417 features such as a flip-up design, adjustable brackets and built in LCD OSD that provides a space saving, cost effective alternative to lugging around a crash cart.
Please note: an HDMI to DisplayPort converter is required for use with an HDMI source device.
Features and Benefits
- Ultra short depth 400mm / 15.7"
- Ideal for open rack / short depth rack
- 1U 17" 4K LCD display drawer
- 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 video input
- Built-in dual stereo speakers
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
Optional Configurations (Call for availability)
- Touchscreen: Resistive 1-pt
- DC Power: 12, 24, 48, 125 V DC
RP-K1417 Resources
RP-K1417 Brochure (PDF)
RP-K1417 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 15.7 in ( 44 x 442 x 400 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 24.2 lb ( 11 kg ) | ||||||
| Gross Weight | 33 lb ( 15 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 16.1 to 25.2 inch (410 to 640 mm) | ||||||
| Console Ports | |||||||
| Video Input | Display port 1.2 * *Max. 2 meter DP cable for 4K@60Hz | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 17" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 | ||||||
| Brightness (cd/m2) | 400 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | 30 | ||||||
| Dot pitch ( mm ) | 0.0995 | ||||||
| Display area ( mm ) | 382.12H x 214.94V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 20,000 | ||||||
| Audio | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
The RP-K1417 is also known as the RPK1417.
1U 17" Ultra Short Depth 4K Rack Monitor
The new CyberView RP-K1417 is a Ultra Short Depth 1U 17" 4K Rack Mount Monitor Drawer. RP-K1417 features such as a flip-up design, adjustable brackets and built in LCD OSD that provides a space saving, cost effective alternative to lugging around a crash cart.
Please note: an HDMI to DisplayPort converter is required for use with an HDMI source device.
Features and Benefits
- Ultra short depth 400mm / 15.7"
- Ideal for open rack / short depth rack
- 1U 17" 4K LCD display drawer
- 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 video input
- Built-in dual stereo speakers
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
Optional Configurations (Call for availability)
- Touchscreen: Resistive 1-pt
- DC Power: 12, 24, 48, 125 V DC
RP-K1417 Resources
RP-K1417 Brochure (PDF)
RP-K1417 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 15.7 in ( 44 x 442 x 400 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 24.2 lb ( 11 kg ) | ||||||
| Gross Weight | 33 lb ( 15 kg ) | ||||||
| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 16.1 to 25.2 inch (410 to 640 mm) | ||||||
| Console Ports | |||||||
| Video Input | Display port 1.2 * *Max. 2 meter DP cable for 4K@60Hz | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 17" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 | ||||||
| Brightness (cd/m2) | 400 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | 30 | ||||||
| Dot pitch ( mm ) | 0.0995 | ||||||
| Display area ( mm ) | 382.12H x 214.94V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 20,000 | ||||||
| Audio | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
The RP-K1417 is also known as the RPK1417.
