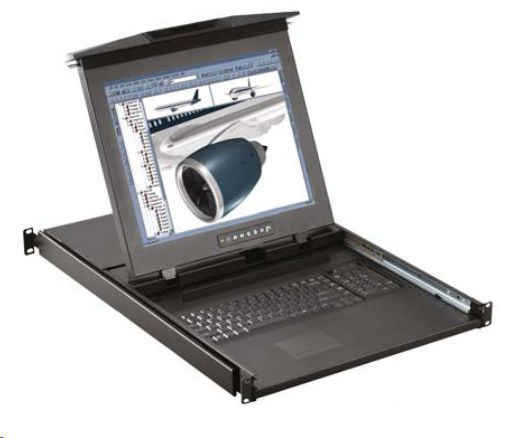

Cyberview D117-S801
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,987.00
$1,833.00
-->
(You save
$154.00
)
1U Rackmount Monitor Drawer 17" LCD, 8-port Combo DB-15 KVM
The D117-S801e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 1-console (1 x local), 8 port Combo DB-15 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-S801e
D117-S801e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- Multiple keyboard language selections with touchpad
- Enhanced aesthetics with molded front panel and two point lock
Combo DB-15 KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Support native SUN 1152 x 900 resolution
- Hot pluggable, no software or drivers required
- Easy & quick installation
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
 D117-S801e Rackmount LCD Diagram |
D117-S801e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 35 lbs. (16 kg.) |
| LCD Panel | |
| Screen Size | 17" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Backlight | CCFL |
| Active Area | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet (16 x 6ft cables included) |
| Local Console | LCD console drawer version (up to 1920x1080 / 1920x1200) |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN, and MAC G3/G4 Mac/iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to240VAC, 50 / 60Hz (12V / 24V / 48V / 110V~125V DC input option) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
1U Rackmount Monitor Drawer 17" LCD, 8-port Combo DB-15 KVM
The D117-S801e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 1-console (1 x local), 8 port Combo DB-15 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-S801e
D117-S801e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- Multiple keyboard language selections with touchpad
- Enhanced aesthetics with molded front panel and two point lock
Combo DB-15 KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Support native SUN 1152 x 900 resolution
- Hot pluggable, no software or drivers required
- Easy & quick installation
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
D117-S801e Rackmount LCD Diagram |
D117-S801e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 35 lbs. (16 kg.) |
| LCD Panel | |
| Screen Size | 17" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Backlight | CCFL |
| Active Area | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet (16 x 6ft cables included) |
| Local Console | LCD console drawer version (up to 1920x1080 / 1920x1200) |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN, and MAC G3/G4 Mac/iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to240VAC, 50 / 60Hz (12V / 24V / 48V / 110V~125V DC input option) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
