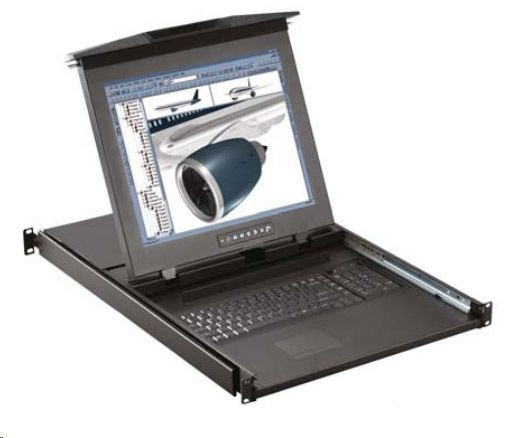

Cyberview D117-IP802
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$2,628.00
$2,425.00
-->
(You save
$203.00
)
1U Rackmount Monitor Drawer 17" LCD, 8-port 2-console Combo DB-15 IP KVM
The D117-IP802e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x IP), 8 port Combo DB-15 IP KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-IP802e
D117-IP802e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- Multiple keyboard language selections with touchpad
- Enhanced aesthetics with molded front panel and two point lock
- Combo interface wither PS/2 or USB for single console drawer
Combo DB-15 IP KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- IP remote access across the world wide web
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
 D117-IP802e Rackmount LCD Diagram |
D117-IP802e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 29.9 lbs. (13.6 kg.) |
| Samsung LCD Monitor | |
| 4:3 Screen Size | 17" |
| Display Type | Active Matrix TFT |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| KVM Switch | |
| KVM Port | 8 x DB-15 combo connector |
| KVM Dongle | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Local Console | LCD console drawer version ( up to 1920 x 1080 / 1920 x 1200 ) |
| IP Remote Console | Connector: RJ45 Ethernet User management: 15-user login, 1 x active user Network protocol: DHCP/BOOTP/DNS Resolution: 1600x1200 Browser: IE, Firefox, Safari, Netscape |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to 240VAC, 50 / 60 Hz 12V / 24V / 48V / 110 ~ 125V DC input option |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
1U Rackmount Monitor Drawer 17" LCD, 8-port 2-console Combo DB-15 IP KVM
The D117-IP802e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x IP), 8 port Combo DB-15 IP KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-IP802e
D117-IP802e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- Multiple keyboard language selections with touchpad
- Enhanced aesthetics with molded front panel and two point lock
- Combo interface wither PS/2 or USB for single console drawer
Combo DB-15 IP KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- IP remote access across the world wide web
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
D117-IP802e Rackmount LCD Diagram |
D117-IP802e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 29.9 lbs. (13.6 kg.) |
| Samsung LCD Monitor | |
| 4:3 Screen Size | 17" |
| Display Type | Active Matrix TFT |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| KVM Switch | |
| KVM Port | 8 x DB-15 combo connector |
| KVM Dongle | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Local Console | LCD console drawer version ( up to 1920 x 1080 / 1920 x 1200 ) |
| IP Remote Console | Connector: RJ45 Ethernet User management: 15-user login, 1 x active user Network protocol: DHCP/BOOTP/DNS Resolution: 1600x1200 Browser: IE, Firefox, Safari, Netscape |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to 240VAC, 50 / 60 Hz 12V / 24V / 48V / 110 ~ 125V DC input option |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
