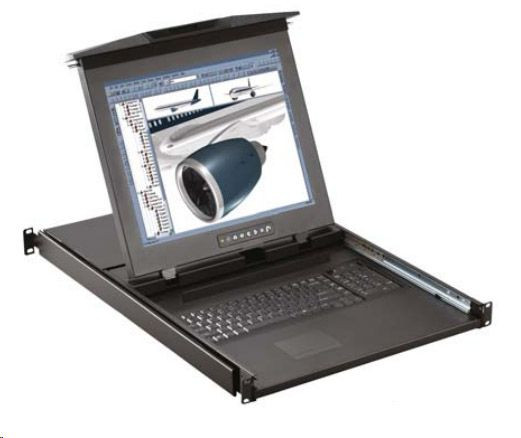

Cyberview D117-MIP1624
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$4,530.00
$4,196.00
-->
(You save
$334.00
)
1U Rackmount Monitor Drawer 17" LCD, 16-port 4-console DB-15 2xIP KVM
The D117-MIP1624e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 4-console (1 x local; 1 x remote; 2 x IP) 16 port Matrix Multi-User DB-15 IP KVM Switch. The keyboard is a 104 key notepad keyboard with a touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-MIP1624e
D117-MIP1624e Features & Benefits:
- 1U dual slide 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface either PS/2 or USB for single console drawer
Matrix Multi-User DB-15 IP KVM Switch Features & Benefits:
- Capable of connecting 16 servers per device in 1U
- Multi-platform servers shared by different consoles in cascade connection
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Mix Legacy PS/2 servers with newer USB and SUN solutions
- Multi lingual on screen display menu
 D117-MIP1624e Rackmount LCD Diagram |
D117-MIP1624e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Monitor | |
| 4:3 Screen Size | 17" |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| Active area (mm) | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| KVM Connectivity | Combo 4-in-1 KVM cable up to 6, 10 & 15 feet |
| Local Console | LCD console drawer version (up to 1920 x 1080 / 1920 x 1200) |
| Cat6 Remote Console | 1 x DB15-pin VGA, up to 1600 x 1200 RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet |
| Expansion | Up to 240 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | Max. 48 Watt, Standby 5 Watt |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
1U Rackmount Monitor Drawer 17" LCD, 16-port 4-console DB-15 2xIP KVM
The D117-MIP1624e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 4-console (1 x local; 1 x remote; 2 x IP) 16 port Matrix Multi-User DB-15 IP KVM Switch. The keyboard is a 104 key notepad keyboard with a touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-MIP1624e
D117-MIP1624e Features & Benefits:
- 1U dual slide 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface either PS/2 or USB for single console drawer
Matrix Multi-User DB-15 IP KVM Switch Features & Benefits:
- Capable of connecting 16 servers per device in 1U
- Multi-platform servers shared by different consoles in cascade connection
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Mix Legacy PS/2 servers with newer USB and SUN solutions
- Multi lingual on screen display menu
D117-MIP1624e Rackmount LCD Diagram |
D117-MIP1624e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Monitor | |
| 4:3 Screen Size | 17" |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| Active area (mm) | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| KVM Connectivity | Combo 4-in-1 KVM cable up to 6, 10 & 15 feet |
| Local Console | LCD console drawer version (up to 1920 x 1080 / 1920 x 1200) |
| Cat6 Remote Console | 1 x DB15-pin VGA, up to 1600 x 1200 RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet |
| Expansion | Up to 240 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | Max. 48 Watt, Standby 5 Watt |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
