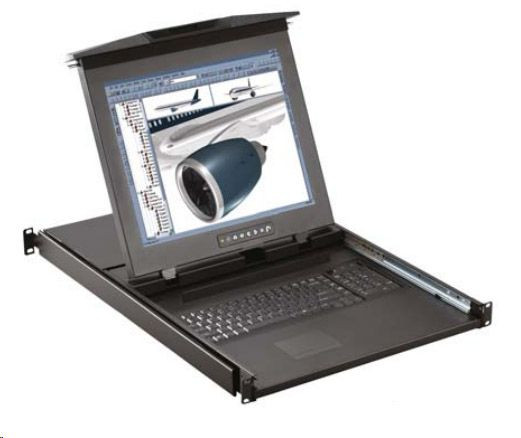

Cyberview D117-802
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$2,457.00
$2,267.00
-->
(You save
$190.00
)
1U Rackmount Monitor Drawer 17" LCD, 8-port 2-console Combo DB-15 KVM
The D117-802e is a 1U Dual Slide Rackmount LCD Monitor with 17" Samsung LCD with integrated 2-console (1 x local; 1 x remote), 8 port Combo DB-15 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-802e
D117-802e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface wither PS/2 or USB for single console drawer
Combo DB-15 Two Console KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- Remote access up to 300 meters
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Cost efficient remote server management between user & equipment rooms within the building
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
 D117-802e Rackmount LCD Diagram |
D117-802e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Panel | |
| Screen Size | 17" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Backlight | CCFL |
| Active Area | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| KVM Cable | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Console | LCD console drawer version up to 1920x1080 / 1920x1200 |
| Remote Receiver | 1 x DB 15-pin, VGA (up to 1600 x 1200), 2 x USB type A for keyboard & mouse RJ45 via Cat5/Cat5e/ Cat6 cable up to 150m |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUNs, MAC G3/G4 Mac/ iMac Windows 7 / Vista / 2003 / XP / Linux, Unix |
| Power | 100 to 240VAC, 50 / 60Hz (12V / 24V / 48V / 110~125V DC input) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
1U Rackmount Monitor Drawer 17" LCD, 8-port 2-console Combo DB-15 KVM
The D117-802e is a 1U Dual Slide Rackmount LCD Monitor with 17" Samsung LCD with integrated 2-console (1 x local; 1 x remote), 8 port Combo DB-15 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-802e
D117-802e Features & Benefits:
- 1U dual slide rackmount drawer with 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface wither PS/2 or USB for single console drawer
Combo DB-15 Two Console KVM Switch Features & Benefits:
- Combo DB-15 KVM with 8 ports in 1U
- Remote access up to 300 meters
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Cost efficient remote server management between user & equipment rooms within the building
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
D117-802e Rackmount LCD Diagram |
D117-802e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Panel | |
| Screen Size | 17" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Backlight | CCFL |
| Active Area | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 16 x DB-15 combo connector |
| KVM Cable | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Console | LCD console drawer version up to 1920x1080 / 1920x1200 |
| Remote Receiver | 1 x DB 15-pin, VGA (up to 1600 x 1200), 2 x USB type A for keyboard & mouse RJ45 via Cat5/Cat5e/ Cat6 cable up to 150m |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUNs, MAC G3/G4 Mac/ iMac Windows 7 / Vista / 2003 / XP / Linux, Unix |
| Power | 100 to 240VAC, 50 / 60Hz (12V / 24V / 48V / 110~125V DC input) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
