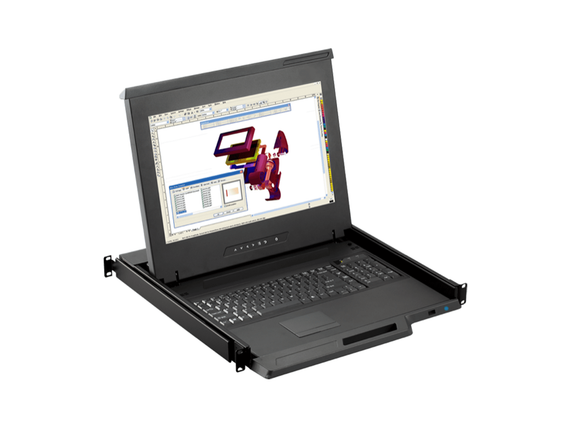

CyberView X117ME
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Replacement:
56462
$2,308.00
-->
High Resolution LCD Console Drawer - Mac Keyboard, Touchpad
The X117me is a 1U Rackmount Mac Ultra High Resolution LCD Console Drawer with Touchpad. This rackmount LCD console has features such as a molded front handle and Picture-in-Picture.
The X117me Keyboard
AH X117me LCD Console Benefits
- 1U 17" widescreen LCD console drawer with VGA, DVI-D w/ speaker
- 1920 x 1200 native WUXGA Ultra high resolution
- PIP & Picture by Picture viewing efficiency
- 104-key Mac keyboard with touchpad
- New enhanced aesthetics with molded front handle
- 2 post rack mounting available
AH X117me Specifications:
| LCD Panel | |
| Size | 17.1" widescreen TFT |
| Max Resolution | 1920 x 1200 |
| Brightness | 210 (cd/m2) |
| Backlight | LED |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio | 600 : 1 |
| Viewing Angle | 130° x 110° |
| Active Area | 367 x 230 |
| MTBF | 20,000 |
| Signal Output | VGA or DVI-D |
| Environmental | |
| Operating Temperature | 32 to 131°F (0-55°C) |
| Storage Temperature | -4 to 140°F (-20-60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft. |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Mechanical | |
| Height | 1.73 in. (44mm) |
| Width | 17.4 in. (441.6mm) |
| Depth | 18.9 in. (480mm) |
| Weight | 24 lbs. (10.8kg) |
| Power | |
| Power Input | Auto-sensing 100 to 240VAC, 50/60Hz |
| Power Consumption | Max. 34W |
| Regulatory | |
| Safety | FCC, CE |
| Environmental | RoHS2, REACH |
High Resolution LCD Console Drawer - Mac Keyboard, Touchpad
The X117me is a 1U Rackmount Mac Ultra High Resolution LCD Console Drawer with Touchpad. This rackmount LCD console has features such as a molded front handle and Picture-in-Picture.
The X117me Keyboard
AH X117me LCD Console Benefits
- 1U 17" widescreen LCD console drawer with VGA, DVI-D w/ speaker
- 1920 x 1200 native WUXGA Ultra high resolution
- PIP & Picture by Picture viewing efficiency
- 104-key Mac keyboard with touchpad
- New enhanced aesthetics with molded front handle
- 2 post rack mounting available
AH X117me Specifications:
| LCD Panel | |
| Size | 17.1" widescreen TFT |
| Max Resolution | 1920 x 1200 |
| Brightness | 210 (cd/m2) |
| Backlight | LED |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio | 600 : 1 |
| Viewing Angle | 130° x 110° |
| Active Area | 367 x 230 |
| MTBF | 20,000 |
| Signal Output | VGA or DVI-D |
| Environmental | |
| Operating Temperature | 32 to 131°F (0-55°C) |
| Storage Temperature | -4 to 140°F (-20-60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft. |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Mechanical | |
| Height | 1.73 in. (44mm) |
| Width | 17.4 in. (441.6mm) |
| Depth | 18.9 in. (480mm) |
| Weight | 24 lbs. (10.8kg) |
| Power | |
| Power Input | Auto-sensing 100 to 240VAC, 50/60Hz |
| Power Consumption | Max. 34W |
| Regulatory | |
| Safety | FCC, CE |
| Environmental | RoHS2, REACH |
