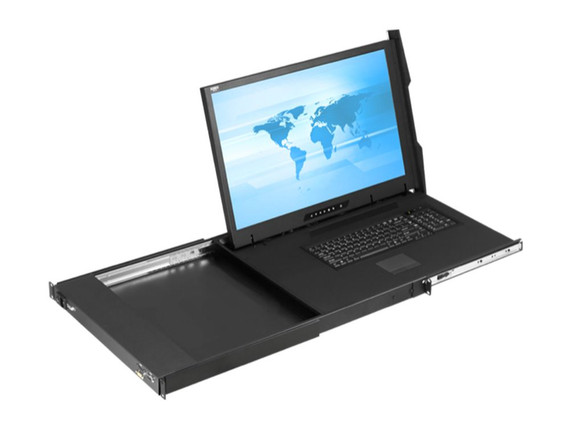

CyberView X124

No reviews yet
Product Code: X124
$2,245.00
$2,071.00
(You save $174.00 )

1U 24" Side-mount 1920 x 1200 Rack LCD Drawer

The newest CyberView Rackmount LCD monitor X124 series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView X124 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the X124 allows the user to be positioned facing the wall comfortably rather than snugged up against it.

Austin Hughes CyberView X124 Rack Mounted

Features and Benefits

  • 1U 24" widescreen LCD console drawer
  • Support 1920 x 1200 native WUXGA Ultra High resolution
  • PIP & Picture by Picture viewing efficiency
  • 104-key keyboard with either touchpad or trackball options
  • SUN Micro and Mac keyboard options available
  • New enhanced aesthetics with molded front handle
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Combo interface for PS/2 or USB input
X124 Trackpad or Trackball Options

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options
  • MAC or SUN Micro keyboard options available

X124 Package Contents

CyberView X124 Package Contents
  • (1) X124 Console Drawer
  • (1) CX-6 6ft DVI-D console cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

X124 Resources

CyberView X124 Diagram X124 Brochure (PDF)
X124 Manual (PDF)
X124 Integrated KVM Manuals (Link)

CyberView X124 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM1.73 x 17.4 x 29.5 in.
(44 x 442 x 750 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.4 x 35.8 in.
(140 x 595 x 910 mm.)
Net Weight
Single Console33.7 lbs. (15.3 kg)
Console w/ KVM35.4 lbs. (16.1 kg)
Gross Weight
Single Console42.9 lbs. (19.5 kg)
Console w/ KVM48.4 lbs. (22 kg)
Mounting Distance
Single Console26 ~ 35 in
(660 ~ 890 mm)
Console w/ KVM26 ~ 38.2 in
(660 ~ 970 mm)
Console Ports
Video InputVGA + HDMI single link
Video OptionHDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
DVI-D console 6ft cable (CX-6)
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal )24.1"
Backlight typeLED
Native resolution1920 x 1200
Brightness (cd/m2)300
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 178° x 178°
Response time ( ms )14
Dot pitch ( mm )0.27
Display area ( mm )518.4H x 324V
Surface treatmentAnti-glare, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 40W / Max. 65W
Power saving modeMax. 5W / Max. 30W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

X124 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView X124 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100X124-1201D

Austin Hughes CyberView X124 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111X124-MIP813X124-MIP1613-
112X124-MIP824X124-MIP1624-
110X124-M802X124-M1602-
120X124-M803X124-M1603-
130X124-M804X124-M1604-

Austin Hughes CyberView X124 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101X124-IP802X124-IP1602-
110X124-802X124-1602-
100X124-S801X124-S1601-

Austin Hughes CyberView X124 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101X124-IP802HX124-IP1602H-
110X124-802HX124-1602H-
100X124-801HX124-1601H-
