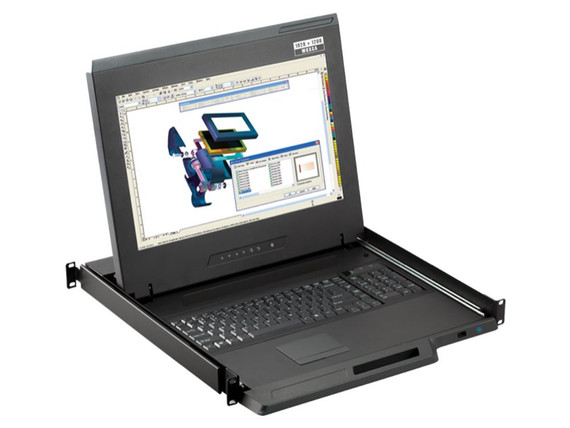

Cyberview X117

Zoom the image with the mouse

Cyberview X117

No reviews yet

Product Code: X117

$2,333.00

$2,153.00

(You save $180.00 )

1U 16.2" widescreen LCD console drawer with VGA, DVI-D and HDMI w/ Speaker

The X117 is a 1U Rackmount LCD Monitor with ultra high resolution 16.2" LCD console drawer. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

X117 Features & Benefits:

1U 16.2" widescreen LCD console drawer with VGA, DVI-D and HDMI w/speaker
1920 x 1200 native WUXGA ultra high resolution
PIP & Picture by Picture viewing efficiency
104-key keyboard with either touchpad or trackball
SUN Micro or MAC keyboard options available
New enhanced aesthetics with molded front handle
Front USB port for device access (USB Hub KVM only)
2 post rack mounting available

Optional Configurations (Contact us for availability)

Front USB hub port for device access
3G / HD / SD-SDI Broadcast-grade input
Audio input & output
MAC or SUN Micro keyboard options available
DC Power: 12, 24, 48, 125 V DC
2-post rack mounting brackets ( ORB-2.1 )
Multiple Integrated KVM Switch Options

X117 Package Contents

(1) X117 Console Drawer
(1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
(1) Power cord
(8) M6 screw, cage nut & cup washer
(1) 2-year standard warranty ( upgradable up to 5 years )

X117 Resources

CyberView X117 Diagram X117 Brochure (PDF)
X117 Manual (PDF)
X117 Integrated KVM Manuals (Link)

X117 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 18.9 in. (44 x 442 x 480 mm.)
Console w/ KVM	1.73 x 17.4 x 22.8 in. (44 x 442 x 580 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)

Net Weight

Single Console	24 lbs. (10.9 kg)
Console w/ KVM	26.6 lbs. (12.1 kg)

Gross Weight

Single Console	34.8 lbs. (15.8 kg)
Console w/ KVM	39.8 lbs. (18.1 kg)

Mounting Distance

Single Console	19.3 ~ 28.3 inch (490 ~ 720 mm)
Console w/ KVM	19.3 ~ 31.5 inch (490 ~ 800 mm)

Console Ports

Video Input

HDMI 1.4 + DVI-D single link + VGA

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A

LCD Screen

LCD panel size ( diagonal )

16.2"

Backlight type

LED

Native resolution

1920 x 1200

Brightness (cd/m2)

300

Colors

16.7 M, 8-bit

Contrast Ratio (typ)

800 : 1

Viewing angle ( L/R/U/D )

89 / 89 / 89 / 89

Response time ( ms )

Dot pitch ( mm )

0.191

Display area ( mm )

343.8H x 214.9V

Surface treatment

Anti-glare, Hard-coating

Surface hardness

MTBF (hrs)

20,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30Ω / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30Ω / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 34W / Max. 59W
Power saving mode	Max. 4W / Max. 29W
Power button on	Max. 1W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

The X117 series is also known as the X-117. The X117e comes with an integrated touchpad, while the X117b comes with an integrated trackball.

X117 models with Integrated KVM Switch (Contact us for pricing / availability)

DVI-D KVM	Local User	Extended	IP	12-Port
DVI-D KVM	1	0	0	X117-1201D

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	X117-MIP813	X117-MIP1613	-
1	2	1	X117-MIP814	X117-MIP1614	-
1	1	2	X117-MIP824	X117-MIP1624	-
1	1	0	X117-M802	X117-M1602	-
1	2	0	X117-M803	X117-M1603	-
1	3	0	X117-M804	X117-M1604	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	X117-IP802	X117-IP1602	-
1	1	0	X117-802	X117-1602	-
1	0	0	X117-S801	X117-S1601	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	X117-IP802H	X117-IP1602H	-
1	1	0	X117-802H	X117-1602H	-
1	0	0	X117-801H	X117-1601H	-

VGA PS/2 KVM	Local User	Extended	IP	8-Port	16-Port	32-Port
VGA PS/2 KVM	1	0	0	X117-801	X117-1601	-
