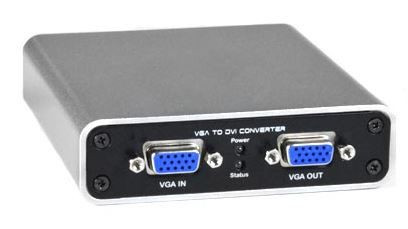

NTI VGA-DVI-FOSC
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,025.00
$964.71
-->
(You save
$60.29
)
Converts VGA to DVI video and extends up to 1,640 feet (500 meters)
The VGA to DVI Converter/Extender converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.
The Converter/Extender system has two components: the VGA converter/transmitter, which connects to the VGA source and also supplies video to a local VGA display, and an ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.
Product Features and Benefits
- Convert a video source with analog VGA signal to a digital DVI signal.
- Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
- Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
- Supports resolutions to 1920x1200 (WUXGA).
| Video Input | One female 15-pin HD connector for VGA input. |
| Video Output | One female 15-pin HD connector for VGA output. One female SC fiber connector for optical DVI output. Supports resolutions to 1920x1200. |
| Power | 100 to 240 VAC at 50 or 60 Hz via AC adapter. |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Relative Humidity | 0 to 85% non-condensing RH |
| Dimensions | WxDxH in: 4.09x4.41x1.10 (104x112x28 mm) |
| Weight | 1.8 lb (0.82) |
| Approvals | CE, FCC, RoHS |
| Warranty | Two Years |
Converts VGA to DVI video and extends up to 1,640 feet (500 meters)
The VGA to DVI Converter/Extender converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.
The Converter/Extender system has two components: the VGA converter/transmitter, which connects to the VGA source and also supplies video to a local VGA display, and an ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.
Product Features and Benefits
- Convert a video source with analog VGA signal to a digital DVI signal.
- Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
- Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
- Supports resolutions to 1920x1200 (WUXGA).
| Video Input | One female 15-pin HD connector for VGA input. |
| Video Output | One female 15-pin HD connector for VGA output. One female SC fiber connector for optical DVI output. Supports resolutions to 1920x1200. |
| Power | 100 to 240 VAC at 50 or 60 Hz via AC adapter. |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Relative Humidity | 0 to 85% non-condensing RH |
| Dimensions | WxDxH in: 4.09x4.41x1.10 (104x112x28 mm) |
| Weight | 1.8 lb (0.82) |
| Approvals | CE, FCC, RoHS |
| Warranty | Two Years |
