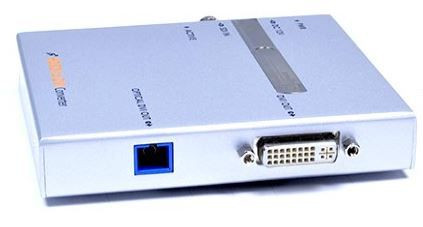

NTI 3GSDI-DVI-FOSC
Product Code:
3GSDI-DVI-FOSC
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Converts 3G-SDI/HD-SDI/SD-SDI to DVI video and extends up to 1,640 feet.
The 3G-SDI to DVI Converter/Extender converts SD/HD/3G-SDI video into a DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand multimode SC fiber optic cable.
The Converter/Extender system has two components: the 3GSDI-DVI-FOSC converter/transmitter, which connects to the SD/HD/3G-SDI video source and also supplies video to a local DVI monitor, and an optional ST-1FODVI-R-SC receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.
Product Features and Benefits
- Connects a computer or camera with a 3G-SDI/HD-SDI/SD-SDI video signal to a DVI display.
- Use with an optical receiver (ST-1FODVI-R-SC) to extend a remote DVI monitor 1,640 feet (500 meters)
- Signal transmission via single-strand multimode (50-micron or 62.5-micron) SC fiber optic cable - no RF interference.
- Supports resolutions to 1080p.
- Auto-detects 3G, HD or SD-SDI format.
- Complies with DVI 1.0 standard.
| Video Input | One female BNC connector for SD/HD/3G-SDI input signals. Input signals: SMPTE 259M-C (270 Mbps), SMPTE 292M (1.485, 1.485/1.001 Gbps), and SMPTE 424M (2.970, 2.970/1.001 Gbps). |
| Video Output | One female DVI-I single link connector for DVI output. One female SC fiber connector for optical DVI output. Supports resolutions to 1080p |
| Power | 100 to 240 VAC at 50 or 60 Hz via AC adapter. |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 10 to 80% non-condensing RH |
| Dimensions | WxDxH in: 3.90x4.61x0.83 (99x117x21 mm) |
| Weight | 3.0 lb (1.36 kg) |
| Approvals | RoHS |
| Warranty | Two Years |
