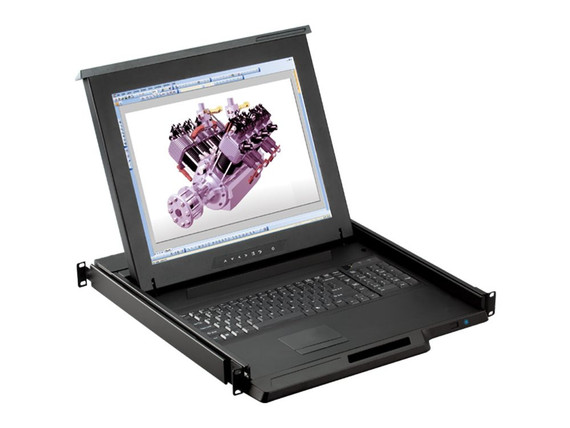

Cyberview RKP117

Name: Cyberview RKP117
SKU: RKP117
Price: 1015 USD
Availability: InStock

No reviews yet

• Available ⓘ This product is available for order. Lead times vary by product and manufacturer.

A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time

Lead time and availability are subject to change without notice.

MSRP: $1,100.00

$1,015.00

(You save $85.00 )

-->

1U 17" LCD Drawer, Keyboard, Trackball or Touch-Pad.

17" 1U Short depth Rackmount TFT LCD Monitor Keyboard Drawer. RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

RKP-117 Features

Unique mechanical design to maximize rack mountable space.
Short depth design of 460mm ( 18.1" )
Black anodized aluminium front panel
Notebook keyboard with touchpad or trackball supporting multiple languages.
Built-in on screen display controlled by integral membrane switches
Lock out rails to prevent movement of the keyboard
Front USB port for device access (USB Hub KVM only)
1280 x 1024 native resolution / 16.7M colors
Rear rackmount bracket included.

RKP117 Keyboard Options

Optional Configurations (Contact us for availability)

Front USB hub port for device access
DVI-D / HDMI 1.2 video input
3G / HD / SD-SDI Broadcast-grade input
S-Video + Composite ( BNC )
Audio input & output
MAC or SUN Micro keyboard options available
DC Power: 12, 24, 48, 125 V DC
Multiple Integrated KVM Switch options
2-post rack mounting brackets ( ORB-2.1 )
Touchscreen: Capacitive 1-pt / Resistive 1-pt

RKP117 Package Contents

(1) RKP117 Console Drawer
(1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
(1) Power cord
(8) M6 screw, cage nut & cup washer
(1) 2-year standard warranty ( upgradable up to 5 years )

RKP117 Resources

CyberView RKP117 Diagram RKP117 Brochure (PDF)
RKP117 Manual (PDF)
RKP117 Integrated KVM Manuals (Link)

RKP-117 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 18.1 in. (44 x 442 x 460 mm.)
Console w/ KVM	1.73 x 17.4 x 22.8 in. (44 x 442 x 580 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)

Net Weight

Single Console	26.4 lbs. (12 kg)
Console w/ KVM	28.6 lbs. (13 kg)

Gross Weight

Single Console	36.5 lbs. (16.6 kg)
Console w/ KVM	41.8 lbs. (19 kg)

Mounting Distance

Single Console	18.5 ~ 27.6 inch (470 ~ 700 mm)
Console w/ KVM	18.5 ~ 31.5 inch (470 ~ 800 mm)

Console Ports

Video Input

VGA

Video Option

DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable (CB-6)

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

LCD Screen

LCD panel size ( diagonal )

17"

Backlight type

LED

Native resolution

1280 x 1024

Brightness (cd/m2)

250

Colors

16.7 M

Contrast Ratio (typ)

1000 : 1

Viewing angle ( L/R/U/D )

85/85/80/80

Viewing angle (H x V)

160° x 160°

Response time ( ms )

Dot pitch ( mm )

0.264

Display area ( mm )

337.92H x 270.33V

Surface treatment

Haze 25%, Hard-coating

Surface hardness

MTBF (hrs)

30,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30Ω / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30Ω / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 25W / Max. 55W
Power saving mode	Max. 4W / Max. 34W
Power button on	Max. 1W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC, CE & CCC certified

Safety

c UL us, CE / LVD & CCC certified

Environment

RoHS2 & REACH compliant

RKP117 models with Integrated KVM Switch (Contact us for pricing / availability)

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	-	RKP117-MUIP1613	RKP117-MUIP3213
1	2	1	-	RKP117-MUIP1614	RKP117-MUIP3214
1	1	2	-	RKP117-MUIP1624	RKP117-MUIP3224
1	1	0	-	RKP117-MU1602	RKP117-MU3202
1	2	0	-	RKP117-MU1603	RKP117-MU3203
1	3	0	-	RKP117-MU1604	RKP117-MU3204

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	RKP117-UIP802	RKP117-UIP1602	RKP117-UIP3202
1	1	0	RKP117-U802	RKP117-U1602	RKP117-U3202
1	0	0	RKP117-U801	RKP117-U1601	RKP117-U3201

DVI-D KVM	Local User	Extended	IP	12-Port
DVI-D KVM	1	0	0	RKP117-1201D

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	RKP117-MIP813	RKP117-MIP1613	-
1	2	1	RKP117-MIP814	RKP117-MIP1614	-
1	1	2	RKP117-MIP824	RKP117-MIP1624	-
1	1	0	RKP117-M802	RKP117-M1602	-
1	2	0	RKP117-M803	RKP117-M1603	-
1	3	0	RKP117-M804	RKP117-M1604	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	RKP117-IP802	RKP117-IP1602	-
1	1	0	RKP117-802	RKP117-1602	-
1	0	0	RKP117-S801	RKP117-S1601	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	RKP117-IP802H	RKP117-IP1602H	-
1	1	0	RKP117-802H	RKP117-1602H	-
1	0	0	RKP117-801H	RKP117-1601H	-

VGA PS/2 KVM	Local User	Extended	IP	8-Port	16-Port	32-Port
VGA PS/2 KVM	1	0	0	RKP117-801	RKP117-1601	-
