Cyberview RKP117-802
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$2,145.00
$1,979.00
-->
(You save
$166.00
)

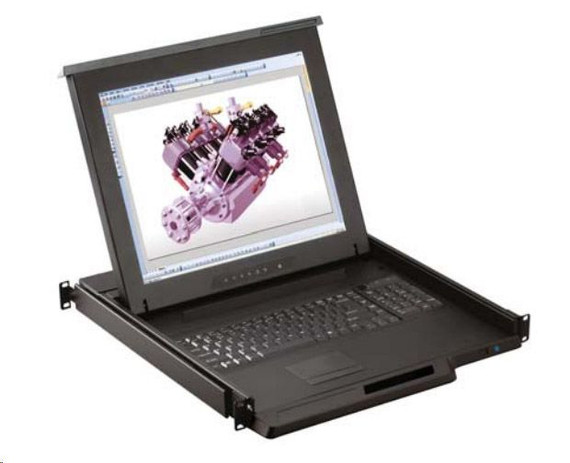

1U Rackmount Monitor Drawer 17" LCD
8-port 2-console PS/2 KVM
8-port 2-console PS/2 KVM
The RKP117 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.
The following keyboard options are available:
- 1U 17" TFT LCD console drawer
- Two keyboard selections, "e" and "b" support multiple languages
- Short depth design of 460mm and 500mm respecitively
- Slide rails have fixed position to prevent movement of the keyboard
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
Advanced Features with KVM:
- Cascade for use up to 128 servers.
- Name servers up to 16 characters long.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin DB connector at switch side.
- Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
- No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
RKP117-802 Specifications:
| Mechanical | |
| Height | 1.73 in. (4.39 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 18.1 in. (45.97 cm.) |
| Weight | 26 lbs. (12 kg.) |
| Package Dimensions (H x W x D) | 5.5 x 23.2 x 31.8 in. (13.9 x 58.9 x 80.7 cm.) |
| Package Weight | 36.5 lbs. (16.6 kg.) |
| LCD Panel | |
| Size | 17" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 160° x 160° |
| Active area (mm) | 338 x 270 |
| Signal Input | VGA |
| Environmental | |
| Operating temperature | 0 to 50°C Degree |
| Storage temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Integrated KVM Switch | |
| Connector | DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable, up to 6,10,15 ft |
| Local Console | LCD console drawer version (up to 1920x1080/1920x1200) |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3, G4 Mac, iMac |
| Support | Windows 7 / Vista / 2003 / XP, Linus, Unix |
| Certifications | UL & cUL |
