Smart AVI HDX-400-PROS
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
HDX-400-PROS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code

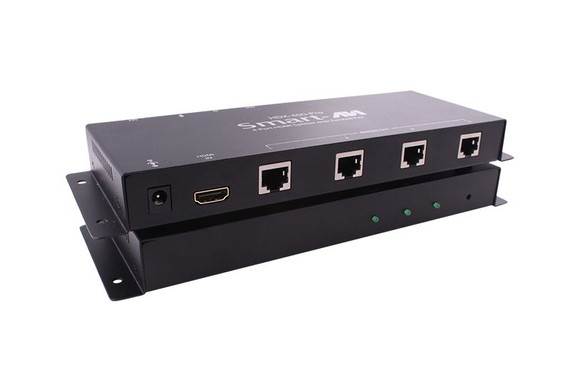

4-Port HDMI Extender via CatX STP
Smart AVI's HDX-400-Pro is an innovative solution to extending any HDMI signal such as game-systems, Blu-ray players and computers via CatX cabling up to 180 ft. away to four remote display screens at once.
This is the perfect solution for broadcasting high-definition media easily and inexpensively from a source to four display screens for anyone to view while keeping the CPU in a remote, secure location, such as a computer room or the back office.
The HDX-400-Pro utilizes four HDX-RX100 receivers and enables the user to send the same HDMI signal to four remote displays.
- Distribute and extend one HDMI Source to Displays via Four Cat5e/Cat6/Cat6 STP Cables
- Maximum Signal Extension up to 180 feet
- Supports 3D Signals
- Supports HDMI Resolutions of 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Supports Audio Formats of DTS-HD/DolbyTrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- No Loss of Signal Quality up to Maximum Distance
- LED Status Lights
- Plug-and-Play Ready
| Mechanical | |
| Width | 9.125 in (231.78 mm.) |
| Height | 1.125 in. (28.58 mm.) |
| Depth | 3.125 in. (79.38 mm.) |
| Weight | 0.25 lbs (0.11 kg.) |
| Video | |
| HDMI Resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Audio Input Formats | DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Audio Output Formats | LPCM7.1/DTS/Dolby-AC3/DSD |
| Maximum Signal Extension | Up to 180 ft |
| Maximum Pixel Clock | 225MHz |
| Maximum Rate | 6.75Gbps |
| Input Video Signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Current | 3000mA |
| Other | |
| Operating Temperature | 32-104°F (0-40°C) |
| Relative Humidity | 0.5 to 90% RH, Non-Condensing |
