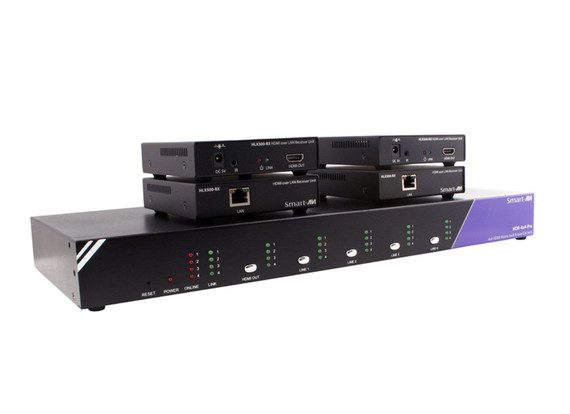

Smart AVI HDR4X4PROS
Product Code:
HDR4X4PROS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
4X4 1080p HDMI Matrix with 325 ft of Extension over CatX
The HDR-4x4-Pro by SmartAVI is an HDMI matrix switch that supports four HDMI sources and users can route the four sources to any of the four connected HDMI displays. Using an inexpensive Cat5e/6 cable and an HLX-500-RX receiver unit at each of the four end points, users can extend the HDMI signals up to 325 feet (100 meters). This reliable extension capability breaks the distance barriers that restrict HDMI cables. With unprecedented flexibility and convenience, this new device is overhauling the old challenges of HD matrix routers with an easy-to-install solution which includes a local HDMI out for enhanced monitoring capabilities.
The HDR-4x4-Pro can direct four inputs and four outputs with effortless switching options. While some users will prefer to switch sources by using the front-panel buttons on the device, others will require longer distance switching solutions. That's why the matrix offers RS-232 control and infrared control, enabling users to operate the matrix's functions from virtually anywhere.
Product Benefits and Features
- 4x4 Non-Blocking, HDMI Matrix Switch
- Distributes Any of the Four Inputs to Any of the Four HDMI Output Displays
- Local HDMI Output
- Up to 325 feet of Extension over Cat5e/6
- Resolutions up to 1080p
- EDID Learning Mode
- Supports RS-232 and Infrared Control
- HDCP and HDMI 1.3 Compliant
| Mechanical | |
| Width | 17.3 in (439.42 mm.) |
| Height | 1.65 in. (41.91 mm.) |
| Depth | 8.8 in. (223.52 mm.) |
| Weight | 1.5 lbs (0.68 kg.) |
| Video | |
| Format | HDMI |
| DVI Compliance | Single-link DVI-D 1.1 with Adapter |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution | Up to 1080p |
| Inputs(Matrix) | (4) HDMI (7.1ch audio & video) |
| Local Output(Matrix) | (1) HDMI (7.1ch audio & video) |
| Output (End Point) | (4) HDMI (7.1ch audio & video) |
| Connector | Type A (19-pin female) |
| Maximum Distance | 20 ft. |
| Control | |
| Front Panel | Tact Switch |
| Other | RS-232 Control, Infrared |
| Speed | @ 115 Kbps |
| Other | |
| Power | External 100-240 VAC/5VDC4A |
| Approvals | UL, CE, RoHS Compliant |
| Operating Temperature | 32-131°F (0-55°C) |
| Storage Temperature | -4-185°F (-20-85°C) |
