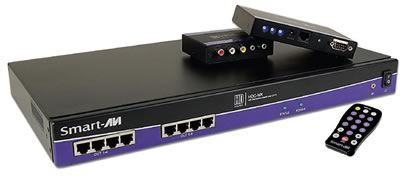

SmartAVI HDC-MXS
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
HDC-MXS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Component or VGA Audio/Video + RS-232/IR 8x8 Matrix over CAT5
The SmartAVI HDC-MXS HDTV Router combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one sleek, cost-effective compact design. This gives you absolute control over all of your home entertainment components, how your system is set up and allows you to extend each of the component signals up to 1,699 feet!
SmartAVI HDC-MXS HDTV Router Application Diagram
SmartAVI HDC-MXS Features:
- Routes additional audio signals independently
- Integrated IR and RS-232 router for each station
- Optimal high-quality audio switching
- Optimal high-quality video switching
- Supports resolutions up to 1920 x 1200
- Full duplex infrared and RS-232 control for matrix and connected devices
- Completely transparent IR function supports all frequencies between 20 and 100Khz
- PC Windows¨ control software
- Cable compensation up to 1,699 feet
- Compact metal housing for receivers
- Can distribute multiple video signals (RGB, YUV, RGBS, HDTV)
- HD Compatible(480p, 720p, 1080, 1080p
SmartAVI HDC-MXS Specifications:
| Mechanical | |
| Height | 3.4in (8.6cm) |
| Width | 19in (48.3cm) |
| Depth | 17.7in (45cm) |
| Weight | 9lbs |
| Audio | Signal 15KHz 0dB unbalanced 100 Ohms impedance |
| Power | Voltage 90-230V IEC 1A A/S 56/60 Hz |
| Video Resolution | Bandwidth 400 MHz Input Signal level 1 Volt p-pk into 75R Output Impedance 100 Ohms Input Impedance 75 Ohms Connector 8 x HD15 socket female Format VGA/SVGA/XGA/RGBHV//RGsB/CVGS/YC/YUV/RGBS/HDTV Syncs TTL5VDC Bandwidth Horizontal Sync up to 85KHz |
| Control | IR 3.5mm connector with 38khz DB9 female RS-232 or RS-422 @ 9600bps |
| Connectors | RCA or 3.5 Stereo Jack RS-232 8 x RS-232 DB9 Female, TX, RX, GND Infrared 8 x IR 3.5mm Jack to IR emitter Front Panel 8 x RJ45 with video, audio and data modulated within single UTP |
