SmartAVI HDC-IR
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
HDC-IRS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Extends infrared control
signals using CAT5 UTP
signals using CAT5 UTP
Download the
HDC-IRS Manual (PDF)

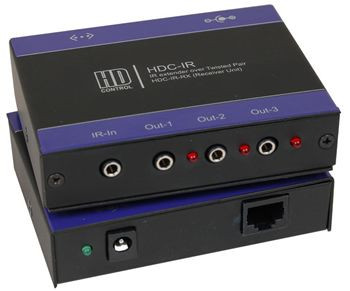

The SmartAVI HDC-IR allows the extension of InfraRed control signals using single CAT5 UTp (category 5, unshielded twisted pair) cable. HDC-IRS Manual (PDF)
HDC-IR Features:
- Uses easy to install, inexpensive CAT5.
- Output reaches up to 1000 feet (300m).
- Sends IR and Power signals over CAT5
- High ground loop immunity.
- Video cable compensation (automatic).
- Sends Composite Video Stereo Audio, IR and Power signals over CAT5.
- Compatible with line level stereo audio signals.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Remote units come with buffered outputs.
- Compact enclosure.
- Optional power supply for remote unit.
- Fully compliant with standard modulated IR and the latest IRDA.
- Fully transparent path for all products and data transfers.
- Bi-directional IR.
- Supports any IR Remote Control
SmartAVI HDC-IR Application Diagram
SmartAVI HDC-IR Specifications:
| Mechanical | |
| Height | 1.0 in. (35 mm.) |
| Width | 2.5 in. (85 mm.) |
| Depth | 2.5 in. (85 mm.) |
| Weight | 0.25 lb. (0.9 kg.) |
| Power Requirements | 5VDC 30mA |
| Signal Type | TTl |
| IR EYE input | |
| IR Frequency Range | 30KHz to 80KHz |
| Capture Distance | Up to 25 ft. |
| Cable Connector | 3.5 mm. stereo jack |
| IR Signal Indicator | Green LED |
| IR Emitter Output | |
| IR Frequency Range | 30KHz to 80KHz |
| Emitter Distance | Up to 10 ft. |
| Cable Connector | 3.5 mm. mono jack |
| IR Signal Indicator | Red LED |
| Box | |
| Power Requirements | 12VDC 1A dongle power up to 250 ft. |
| Cable Link | CAT5 568A or 568B |
