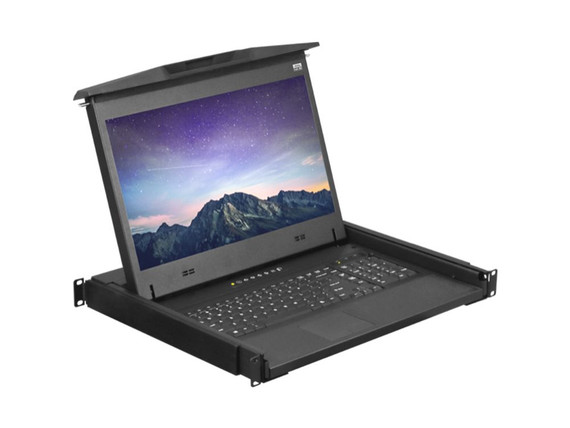

CyberView F1417

Name: CyberView F1417
SKU: F1417
Price: 1395 USD
Availability: InStock

No reviews yet

• Available ⓘ This product is available for order. Lead times vary by product and manufacturer.

A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time

Lead time and availability are subject to change without notice.

MSRP: $1,512.00

$1,395.00

(You save $117.00 )

-->

1U 17" Ultra Short Depth 1080P LCD Console Drawer

The new CyberView F1417 is a Ultra Short Depth 1U 17" 1080P Rack Mount Monitor Drawer. The RKP14 Series is a combination of keyboard, mouse and monitor KVM console into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

Austin Hughes CyberView F1417 Rack Mounted

F1417 Features and Benefits

1U 17" LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA video input / USB KB / MS
Ultra Short depth design of 400mm (15.7 in.)
Ideal for open rack / short depth rack
104-key keyboard with either touchpad or trackball options
One Man installation design
Enhanced aesthetics with new molded front panel and 2-point lock
6ft combo cable included
Modular for a highly customizable rack console - integrated KVM, peripherals & more

Optional Configurations (Contact us for availability)

DVI-D video input
3G / HD / SD-SDI Broadcast-grade input
DC Power: 12, 24, 48, 110-125 V DC
Multiple integrated KVM Switch options
MAC or SUN Micro keyboard options available
2-post rack mounting brackets ( ORB-2.1 )
Touchscreen: Resistive 1-pt, Projective 10-pt

F1417 Package Contents

(1) F1417 Console Drawer
(1) 2.5A Power adapter & Power cord
(8) M6 screw, cage nut & cup washer
(1) 2-year standard warranty ( upgradable up to 5 years )

F1417 Resources

CyberView F1417 Diagram F1417 Brochure (PDF)
F1417 Manual (PDF)
F1417 Integrated KVM Manuals (Link)

Cyberview F1417 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 15.7 in. (44 x 442 x 400 mm.)
Console w/ KVM	1.73 x 17.4 x 18.1 in. (44 x 442 x 460 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.2 x 24.5 in.
(140 x 590 x 622 mm.)

Net Weight

Single Console	18.9 lbs. (8.6 kg)
Console w/ KVM	20.7 lbs. (9.4 kg)

Gross Weight

Single Console	29.9 lbs. (13.6 kg)
Console w/ KVM	33.7 lbs. (15.3 kg)

Mounting Distance

Single Console	16.1 ~ 25.2 inch (410 ~ 640 mm)
Console w/ KVM	16.1 ~ 26.8 inch (410 ~ 680 mm)

Console Ports

Video Input

VGA + HDMI

KB / MS

USB

console 6ft cable : CX-6B

HDMI + USB x 2, 6 feet

LCD Screen

LCD panel size ( diagonal )

17.3"

Backlight type

LED

Native resolution

1920 x 1080

Brightness (cd/m2)

400

Colors

16.7 M, 8-bit

Contrast Ratio (typ)

600 : 1

Viewing angle ( L/R/U/D

80/80/60/80

Response time ( ms )

Dot pitch ( mm )

0.1989

Display area ( mm )

381.888H x 214.812V

Surface treatment

Anti-glare, Hard-coating

Surface hardness

MTBF (hrs)

50,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30Ω / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30Ω / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 29W / Max. 38W
Power saving mode	Max. 9W / Max. 18W
Power button on	Max. 2W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

F1417 models with Integrated KVM Switch (Contact us for pricing / availability)

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	-	F1417-MUIP1613	F1417-MUIP3213
1	2	1	-	F1417-MUIP1614	F1417-MUIP3214
1	1	2	-	F1417-MUIP1624	F1417-MUIP3224
1	1	0	-	F1417-MU1602	F1417-MU3202
1	2	0	-	F1417-MU1603	F1417-MU3203
1	3	0	-	F1417-MU1604	F1417-MU3204

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	F1417-UIP802	F1417-UIP1602	F1417-UIP3202
1	1	0	F1417-U802	F1417-U1602	F1417-U3202
1	0	0	F1417-U801	F1417-U1601	F1417-U3201

DVI-D KVM	Local User	Extended	IP	12-Port
DVI-D KVM	1	0	0	F1417-1201D

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	F1417-MIP813	F1417-MIP1613	-
1	2	1	F1417-MIP814	F1417-MIP1614	-
1	1	2	F1417-MIP824	F1417-MIP1624	-
1	1	0	F1417-M802	F1417-M1602	-
1	2	0	F1417-M803	F1417-M1603	-
1	3	0	F1417-M804	F1417-M1604	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	F1417-IP802	F1417-IP1602	-
1	1	0	F1417-802	F1417-1602	-
1	0	0	F1417-S801	F1417-S1601	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	F1417-IP802H	F1417-IP1602H	-
1	1	0	F1417-802H	F1417-1602H	-
1	0	0	F1417-801H	F1417-1601H	-

VGA PS/2 KVM	Local User	Extended	IP	8-Port	16-Port	32-Port
VGA PS/2 KVM	1	0	0	F1417-801	F1417-1601	-
