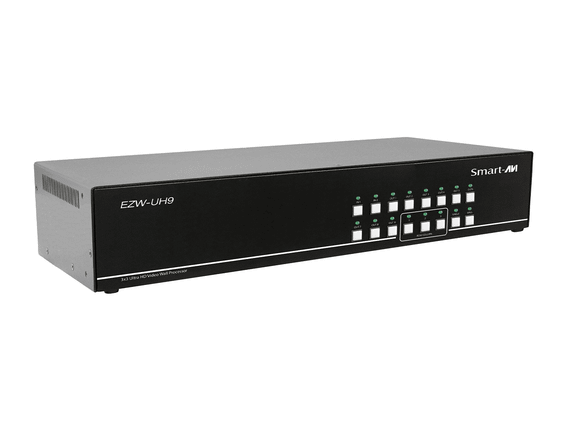

Ultra HD 3x3 Video Wall Processor
Product Code:
EZW-UH9
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Compact Ultra HD 3x3, 4 HDMI input, and 9 HDMI output.
About the EZW-UH9 Ultra HD 3×3 Video Wall Processor
EZW-UH9 is an HDMI 2.0 Video Wall controller with 2 HDMI input, 2 HDMI loop out, and 9 HDMI scaling out for video wall processing. With PC Tool or RS232 commands to control the product for different wall displays.
EZW-UH9 Features
- HDMI 2.0 and HDCP 2.2 compliant
- Support multi-resolution up to 3840x2160@60Hz video output for video wall
- Support 2 channels HDMI loop out
- Support Bezel Compensation with two modes
- Support 180º rotation
- Support PIP on video wall
- Support RS-232 and TCP/IP control
- Support RS-232 and TCP/IP control
EZW-UH9 Industry Applications
- Corporate or educational Presentations
- Airport installations
- Wall displays
- Digital signage
- Dealer rooms
- Control rooms
- Shopping centers
- Security
- Point-of-sale
- Entertainment venues
- Corporate lobbies
- Restaurants
| Video & Audio | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2/1.4 |
| Output Resolutions | Up to 1080P (1920x1080@60Hz) |
| Input Resolutions | Up to 1080P (1920x1080) |
| Outputs | (9) HDMI |
| Inputs | (4) HDMI |
| Audio | 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS |
| Control | |
| RS-232 | Baud rate: 57600, data bit: 8, Stop bit: 1, no parity |
| Mechanical | |
| Dimensions | 17.0" W x 2.7" H x 8.69" D |
| Weight | 6.9lbs |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |
| Energy | |
| Power | PS12VD3A |
| Protection | |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
For more information see:
