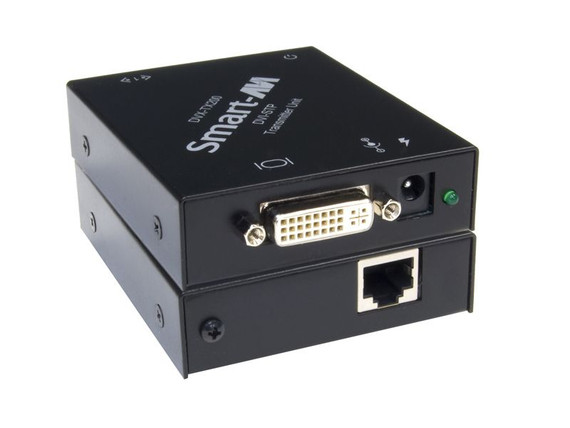

SmartAVI DVX-TX200MS Transmitter
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
DVX-TX200MS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
DVI-D/MAC CAT6 STP Transmitter
The DVX-TX200MS is the perfect solution for extending DVI-D signals to a remote location up to 225 feet away over Cat6 23 AWG STP cabling. It is the ideal way to isolate a workstation computer into one location and a console in another. It is fully compatible with MAC, and LINUX DVI-D single link standards.
*Transmitter Only.
Applications
- Perfect Image Quality at all Resolutions
- Call Centers(co-locate user's computers)
- Industrial (protection against pollution)
- Information Terminals & Kiosks.
- Airports (air traffic control, passenger information systems).
- Medical - using computer tomographs generates strong magnetic fields, which make it impossible to use monitors.
Features
- Top Image Quality at all Resolutions.
- Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) up to the maximum distance.
- User Selectable: DCC-Information MAC or PC
- Distances: 225 ft with Cat6 23AWG STP cable.
- Compatible with all operating systems.
- Compatible with all major KVM Switches.
- Rack Mount options (19)
- Supports MAC
- No Degradation of Video Quality
- LEDs Indicate Power and Loss of clock Signal
- External Power Supplies
- Silent Fanless Operation
SmartAVI DVX-200 Transmitter Specifications
| Mechanical | |
| Height | 1 in. (2.54 cm) |
| Width | 3.68 in. (9.34 cm.) |
| Depth | 3 in. (7.62 cm.) |
| Weight | 0.20 lbs. |
| Video Format | DVI-D Single Link |
| Max Video Pixel Clock | 165 MHz |
| Video Input Interface | (1) DVI-D 29-pin female |
| Video Output Interface | (1) DVI-D 29-pin female |
| Resolution | Up to 1920x1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Power | External 100-240 VAC/5VDC2A @ 10W |
