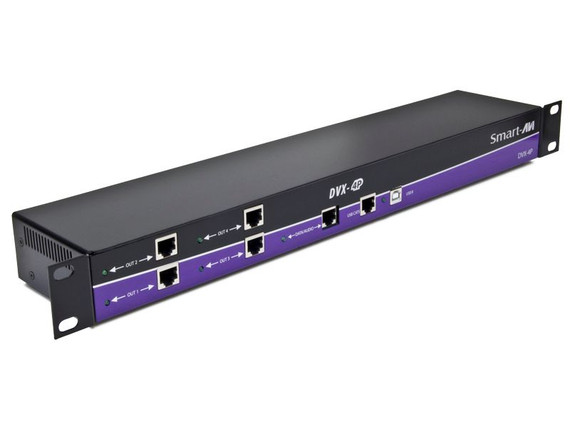

SmartAVI DVX-4P Transmitter
Product Code:
DVX-4P-TXS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
DVX-4P Transmitter w/Internal Power Supply; supports 4 DVI-D, USB, Audio & RS-23
The DVX-4P Transmitter can extend up to four DVI-D, USB 1.1, stereo audio and RS-232 signals up to 275 feet using CAT6 cables, while retaining perfectly clear, crisp image and audio quality (image resolution up to 1900 x 1200 at 60Hz).
Applications
- Medical
- Education
- Military
- Entertainment
Features
- Top image quality at all resolutions
- Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 275 feet
- Internal DCC cables
- Distance: 275 feet with a CAT6 STP cable
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack mount options (19)
- Supports up to 4 DVI-D sources
- Supports USB 1.1 keyboard and mouse
- Uses easy-to-install, inexpensive pair cable
- Data recovery for digital video
- Fully-compliant with USB 1.1 specifications
- Supports 1.5 and 12Mbps data rates
- External power adaptors for transmitter and receiver units
- Fully-transparent (does not use any emulation)
- Plug-and-play
SmartAVI DVX-4P Transmitter
| Mechanical | |
| Height | 1.7 in. (4.31 cm) |
| Width | 3.5 in. (8.89 cm.) |
| Depth | 17 in. (43.18 cm.) |
| Weight | 8 lbs. |
| Input Interface | DVI-D (Single Link) |
| Ouput Interface | DVI_D (Single-Link) |
| Resolution | 1920x1200 at 60Hz, resolution up to 1280x1024 min. 75Hz |
| Video Supported | 480p, 720p, 1080i |
| Video Data Rate | 1.65 Gbps |
| Audio Bandwidth | 15MHz, 0db |
| Audio Impedance | 10k Ohm |
