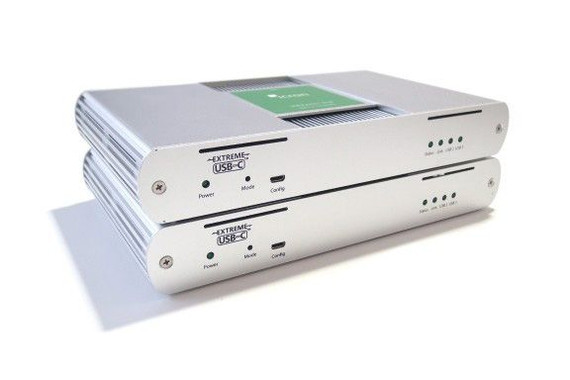

Icron Raven 3124
USB Type:
USB 3.0
MSRP:
$1,924.00
$1,759.76
(You save
$164.24
)
4-Port USB 3.1 Multiode Fiber
Extender (650 ft)
Extender (650 ft)
The Icron USB 3-2-1 Raven 3124 (00-00437) provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection up to 650ft / 200m over Multimode Fiber. The Raven 3124 also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.
The Raven 3104 incorporates ExtremeUSB-C™ technology, enabling users to extend USB 3.1 beyond the standard 10ft / 3m cable limit for USB 3.1 peripheral devices. This extender system is composed of two individual units, the LEX and the REX and allows for up to 600ft / 200m of extension when directly connected over OM3 multimode fiber for your USB 3.1 Gen 1/2 host controllers and devices (up to 5 Gbps). The Raven 3124 is fully backwards compatible and supports all USB device types.
If your USB 3.1 extender application requires extension over CatX cable instead, please see the related Icron USB 3-2-1 Raven 3104 extender.
Icron USB 3-2-1 Raven 3124 Application Diagram
Icron USB 3-2-1 Raven 3124 Features
- Integrated four port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
- Single cable, OM3 Multimode Fiber up to 660ft / 200m
- Easy Point-to-point connection
- USB 3.1 Gen 1 data rate up to 5 Gbp
- Up to 1.2A (6W) per USB port
- 100 Mbps Ethernet channel; LAN pass-through
- FCC and CE (Class B) compliance
- Electrical isolation
- Two year warranty
- ExtremeUSB-C™ suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Applications
- Remote Storage
- Security & Monitoring
- Video Matrix Systems
- Conferencing Cameras
- Industrial control
- Medical Device Connectivity
Raven 3124 (00-00437) Package Contents
- (1) Icron Raven 3124 Transmitter (LEX)
- (1) Icron Raven 3124 Receiver (REX)
- (1) 6ft USB 3.1 Gen 1 Type A to Type B cable
- (1) 24V DC 1A International Power Adapter (LEX)
- (1) 24V DC 2.71A International Power Adapter (REX)
- (2) US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Raven 3124 Resources
Icron Raven 3124 Datasheet (PDF)
Icron Raven 3124 Manual (PDF)
Icron Raven 3124 Quick Start Guide (PDF)
Icron Raven 3124 (00-00437) Specifications
| Mechanical | |
| LEX (Local Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| REX (Remote Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| USB Connector | 1x USB 3.1 Gen 1 Type B Receptacle |
| Link Connector | 1x Duplex LC |
| Network Pass Through | 1x RJ45 Ethernet 100 Mbps Port |
| Power Supply | 100-240V AC Input, 24V 1A DC Output |
| REX (Remote Extender) | |
| USB Connector | 4x USB 3.1 Gen 1 Type A Receptacles |
| Link Connector | 1 x Duplex LC |
| Network Pass Through | 1x RJ45 Ethernet 100 Mbps Port |
| Available Current | Up to 1.2 Amp (6W) to each USB port |
| Power Supply | 100-240V AC Input, 24V 2.71A DC Output |
| Compliance | |
| EMC | FCC (Class B), CE (Class B) |
| Compliance | RoHS2 (CE) |
| USB Device Support | |
| Maximum Throughput | 5 Gbps |
| Traffic Types | All Traffic Types |
| Device Types | All Device Types |
| Maximum Number of Devices and/or Hubs | Up to 30 devices |
| Range | |
| Point-to-Point | Up to 200m (656 ft) over OM3 or better multimode fiber |
4-Port USB 3.1 Multiode Fiber
Extender (650 ft)
Extender (650 ft)
The Icron USB 3-2-1 Raven 3124 (00-00437) provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection up to 650ft / 200m over Multimode Fiber. The Raven 3124 also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.
The Raven 3104 incorporates ExtremeUSB-C™ technology, enabling users to extend USB 3.1 beyond the standard 10ft / 3m cable limit for USB 3.1 peripheral devices. This extender system is composed of two individual units, the LEX and the REX and allows for up to 600ft / 200m of extension when directly connected over OM3 multimode fiber for your USB 3.1 Gen 1/2 host controllers and devices (up to 5 Gbps). The Raven 3124 is fully backwards compatible and supports all USB device types.
If your USB 3.1 extender application requires extension over CatX cable instead, please see the related Icron USB 3-2-1 Raven 3104 extender.
Icron USB 3-2-1 Raven 3124 Application Diagram
Icron USB 3-2-1 Raven 3124 Features
- Integrated four port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
- Single cable, OM3 Multimode Fiber up to 660ft / 200m
- Easy Point-to-point connection
- USB 3.1 Gen 1 data rate up to 5 Gbp
- Up to 1.2A (6W) per USB port
- 100 Mbps Ethernet channel; LAN pass-through
- FCC and CE (Class B) compliance
- Electrical isolation
- Two year warranty
- ExtremeUSB-C™ suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Applications
- Remote Storage
- Security & Monitoring
- Video Matrix Systems
- Conferencing Cameras
- Industrial control
- Medical Device Connectivity
Raven 3124 (00-00437) Package Contents
- (1) Icron Raven 3124 Transmitter (LEX)
- (1) Icron Raven 3124 Receiver (REX)
- (1) 6ft USB 3.1 Gen 1 Type A to Type B cable
- (1) 24V DC 1A International Power Adapter (LEX)
- (1) 24V DC 2.71A International Power Adapter (REX)
- (2) US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Raven 3124 Resources
Icron Raven 3124 Datasheet (PDF)
Icron Raven 3124 Manual (PDF)
Icron Raven 3124 Quick Start Guide (PDF)
Icron Raven 3124 (00-00437) Specifications
| Mechanical | |
| LEX (Local Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| REX (Remote Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| USB Connector | 1x USB 3.1 Gen 1 Type B Receptacle |
| Link Connector | 1x Duplex LC |
| Network Pass Through | 1x RJ45 Ethernet 100 Mbps Port |
| Power Supply | 100-240V AC Input, 24V 1A DC Output |
| REX (Remote Extender) | |
| USB Connector | 4x USB 3.1 Gen 1 Type A Receptacles |
| Link Connector | 1 x Duplex LC |
| Network Pass Through | 1x RJ45 Ethernet 100 Mbps Port |
| Available Current | Up to 1.2 Amp (6W) to each USB port |
| Power Supply | 100-240V AC Input, 24V 2.71A DC Output |
| Compliance | |
| EMC | FCC (Class B), CE (Class B) |
| Compliance | RoHS2 (CE) |
| USB Device Support | |
| Maximum Throughput | 5 Gbps |
| Traffic Types | All Traffic Types |
| Device Types | All Device Types |
| Maximum Number of Devices and/or Hubs | Up to 30 devices |
| Range | |
| Point-to-Point | Up to 200m (656 ft) over OM3 or better multimode fiber |
