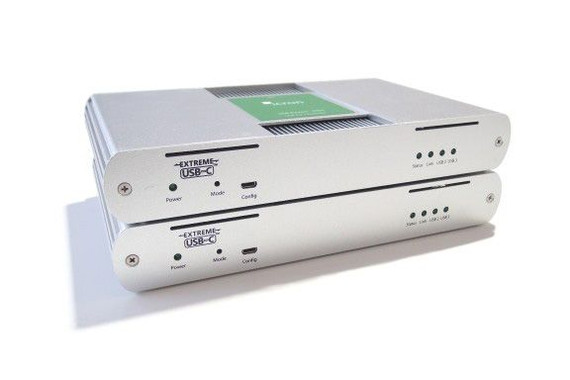

Icron Raven 3104
USB Type:
USB 3.0
MSRP:
$1,468.00
$1,310.62
(You save
$157.38
)
4-Port USB 3.1 CAT6/7
Extender (320 ft)
Extender (320 ft)
The Icron USB 3-2-1 Raven 3104 (00-00421) provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection up to 330ft / 100m over CAT 6a/7. The Raven 3104 also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.
The Raven 3104 incorporates ExtremeUSB-C™ technology, enabling users to extend USB 3.1 beyond the standard 10ft / 3m cable limit for USB 3.1 peripheral devices. This extender system is composed of two individual units, the LEX and the REX and allows for up to 300ft / 100m of extension when directly connected over CAT 6a/7 cable for your USB 3.1 Gen 1/2 host controllers and devices (up to 5 Gbps).
The Raven 3104 is fully backwards compatible and supports all USB device types including USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and/or any other USB 3, 2 and 1 device. If your USB 3.1 extender application requires extension distances up to 660ft / 200m instead, please see the related Fiber-optic Icron USB 3-2-1 Raven 3124 extender.
Icron USB 3-2-1 Raven 3104 Application Diagram
Icron USB 3-2-1 Raven 3104 Features
- Integrated 4-port USB 3.1 hub supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
- Single cable, CAT 6a/7 up to 330ft / 100m
- Easy Point-to-point connection
- USB 3.1 Gen 1 with data rate up to 5 Gbps
- Up to 1.2A (6W) per USB port
- 100/1000 Mbps Ethernet channel with LAN pass-through
- FCC and CE (Class B) compliance
- 2-Year warranty
- ExtremeUSB-C™ suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play - no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Applications
- Remote Storage
- Security & Monitoring
- Video Matrix Systems
- Conferencing Cameras
- Industrial control
- Medical Device Connectivity
Raven 3104 (00-00421) Package Contents
- (1) Icron Raven 3104 Transmitter (LEX)
- (1) Icron Raven 3104 Receiver (REX)
- (1) 6ft / 2m USB 3.1 Gen 1 Type A to Type B cable
- (1) 24V DC 1A International Power Adapter (for LEX)
- (1) 24V DC 2.71A International Power Adapter (for REX)
- (2) US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Raven 3104 Resources
Icron Raven 3104 Datasheet (PDF)
Icron Raven 3104 Manual (PDF)
Icron Raven 3104 Quick Start Guide (PDF)
Icron Raven 3104 (00-00421) Specifications
| Mechanical | |
| LEX (Local Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| REX (Remote Extender) | 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3") |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| USB Connector | 1x USB 3.1 Gen 1 Type B Receptacle |
| Link Connector | 1 x RJ45 "LINK" |
| Network Pass Through | 1x RJ45 "LAN" Ethernet 100/1000 Port |
| Power Supply | 100-240V AC Input, 24V 1A DC Output |
| REX (Remote Extender) | |
| USB Connector | 4x USB 3.1 Gen 1 Type A Receptacles |
| Link Connector | 1 x RJ45 "LINK" |
| Network Pass Through | 1x RJ45 "LAN" Ethernet 100/1000 Port |
| Available Current | Up to 1.2 Amp (6W) to each USB port |
| Power Supply | 100-240V AC Input, 24V 2.71A DC Output |
| Compliance | |
| EMC | FCC (Class B), CE (Class B) |
| Compliance | RoHS2 (CE) |
| USB Device Support | |
| Maximum Throughput | 5 Gbps |
| Traffic Types | All Traffic Types |
| Device Types | All Device Types |
| Maximum Number of Devices and/or Hubs | Up to 30 devices |
| Range | |
| Point-to-Point | Up to 100m (328 ft) over CAT6a/7 Cable |
USB 3-2-1 Raven 3104 Part Numbers
| Part Number | Name |
| 00-00421 | Icron Raven 3104 - North American cord |
| 00-00422 | Icron Raven 3104 - European cord |
| 00-00423 | Icron Raven 3104 - UK cord |
| 00-00424 | Icron Raven 3104 - Australian cord |
