NTI VOPEX-HD4K-4-LC
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$65.00
$61.18
-->
(You save
$3.82
)

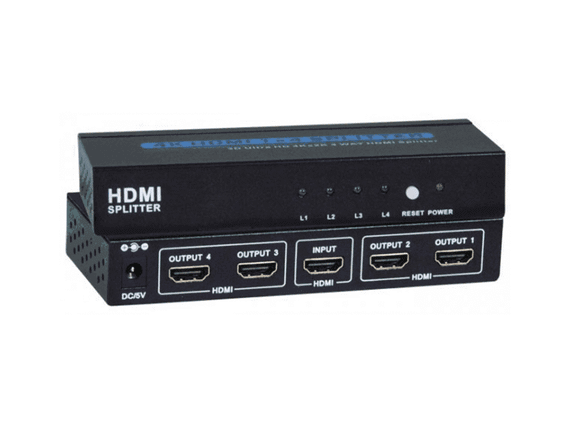

4 Port HDMI Splitter (4K)
NTI HDMI Splitter Data Sheet
About VOPEX-HD4K-4-LC 2-Port 4K HDMI Splitter
The 4K HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 30Hz image from one 10.2Gbps HDMI video source to up to four displays.
VOPEX-HD4K-4-LC Features
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30Hz YUV 4:4:4) and HDTV resolutions to 1080p.
- HDMI features supported:
- HDMI 1.4
- RGB, YCbCr 4:4:4, and YCbCr 4:2:2
- Dolby TrueHD, Dolby-AC3, LPCM 7.1, DTS, DSD, and DTS-HD Master Audio
- Up to 48-bit Deep Color
- 3D
- HDCP 1.4 compliant
- Plug and play functionality ? no new software or drivers required.
- Ideal for digital signage, conference rooms, tradeshows, or classrooms where high quality video on multiple displays is needed.
- 4-Port
Product Resources
Vopex-HD4K-2/4-LC User ManualNTI HDMI Splitter Data Sheet
VOPEX-HD4K-4-LC Specifications
| Video |
| Input: One female HDMI connector |
| Output: Four female HDMI connectors |
| Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @30Hz YUV 4:4:4) and HDTV resolutions to 1080p. |
| Compliant with HDMI 1.4 and HDCP 1.4 standards. |
| Control Methods |
| Front panel buttons with LED indication of port selection. |
| Power |
| 100 to 240 VAC at 50 or 60 HZ via included AC adapter. |
| Dimensions |
| WxDxH 5.53" x 2.5" x 0.79"in (140 x 64 x 20mm) |
| Package Includes |
| HDMI Switch |
| AC power adapter |
| User manual |
