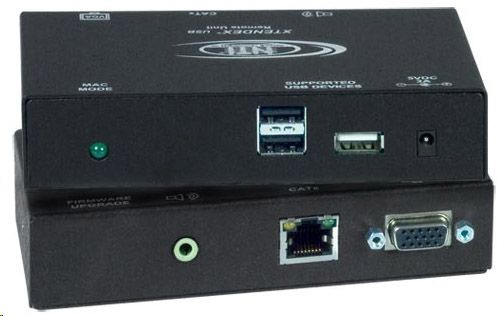

NTI VOPEX-C5USBVA-8
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,175.00
$1,105.88
-->
(You save
$69.12
)
8-Port USB KVM + Audio
The VOPEX¨ VGA USB KVM Splitter/Extender allows up to eight remote users (8 USB keyboards, mice, and VGA monitors) to access one USB computer (PC, SUN, MAC) located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location.
The VOPEX VGA USB KVM Splitter/Extender system has two components: the VOPEX-C5USBVA-x broadcast unit, which connects to a computer and provides local keyboard, monitor and mouse connections; and an XTENDEX¨ ST-C5USBVA-R-1000S remote unit (sold separately) for each remote monitor, keyboard, and mouse. The units are interconnected by CAT5/5e/6 cable.
For additional remote USB port support please see VOPEX-C5USBVUA-8 (local extender) and ST-C5USBVUA-R-1000S (remote unit), see also related products.- Industry-leading ultra-high resolutions up to 2048x1536.
- Compatible with USB computers (PC, SUN, MAC).
- Access one computer from multiple locations.
- Provides local KVM access.
- The local USB ports can also be used to connect printers, scanners, security cameras, etc
- Multiple users can enter data into the same program.
- Easily expandable. Add remote units as you add users.
- Supports DDC emulation and mixing.
- DDC mixing provides a table of resolutions that are common to each connected monitor).
- Compliant with USB 2.0 (low/full speed) standards.
- Automatically adjust video quality and color skew for crystal clear video with longer cables.
- Supports Plug-n-Play specifications.
- Built-in surge protection.
- Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards.
- High quality, rugged steel construction with durable powder coat finish.
- Flash upgradeable.
NTI VOPEX-C5USBVA-8 Specifications
| Mechanical | |
| Height | 1.7 in. (4.3 cm) |
| Width | 7.35 in. (18.66 cm.) |
| Depth | 5 in. (12.7 cm.) |
| Host Connection | |
| Connectors | 1 male 15-pin HD 1 female USB type B 1 female 3.5mm stereo audio |
| Input Impedance | 75 Ohms |
| Support | USB Computer (PC, SUN, MAC) |
| Platform Support | Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10 |
| Local Access | |
| Video resolution | 2048x1536 |
| Connector | 1 female 15pin HD 1 3.5mm stereo audio plug 2 female USB Type A |
| Audio | |
| Frequency Response | 20Hz to 20 kHz, ±1 dB |
| Signal-to-Signal Ratio | 76 dBA |
| Stereo crosstalk | -70db |
| Total Harmonic Distortion and Noise | 0.017% |
| Power | 110 to 220 VAC at 50 or 60 HZ via AC Adapter |
