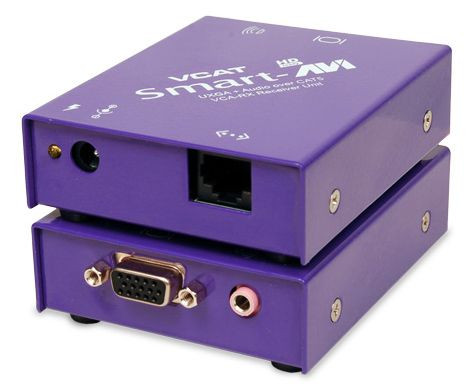

VCA-RX100 Receiver

The SmartAVI VCA-RX100S is the receiver (requires transmitter sold separately) for the VCA-100S and VCA-400S Video Extender systems, which use a single CAT5 cable to broadcast high resolution UXGA and stereo audio up to 1000ft away.

SmartAVI VCA Extender System Features:

• Uses easy to install, inexpensive CAT5
• Output reaches up to 1,000 feet
• Supports high resolution clear video up to 1900x1200
• 300 MHz Bandwidth
• Sends high-resolution VGA signals and stereo audio up to 1000 feet
• Compatible with VGA, XGA, Sun, MAC and SGI Signals
• Sync Format / Polarity Preservation
• High ground loop immunity
• Built-in lightning, power surge and transient protection
• Remote Units come with Buffered Outputs
• Designated trimmer in the remote unit to compensate for cable length
• Metal Case Enclosure
• External power supply

SmartAVI VCA100 Video Extender Application Diagram

Applications for the VCA400 include:

• Presentations:
  Enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
• Data Broadcasting:
  Data such as news, stock prices, sports results, and flight information can be broadcasted in real time to various monitors.
• Learning and Training:
  Can be used in educational presentations to multiple locations, in schools and in other training facilities.

Package Includes:

• 1 x VCA-RX100 (Receiver Unit)
• 1 x PS5VD1A (Power Supply)

VCA-RX100 Specifications:
