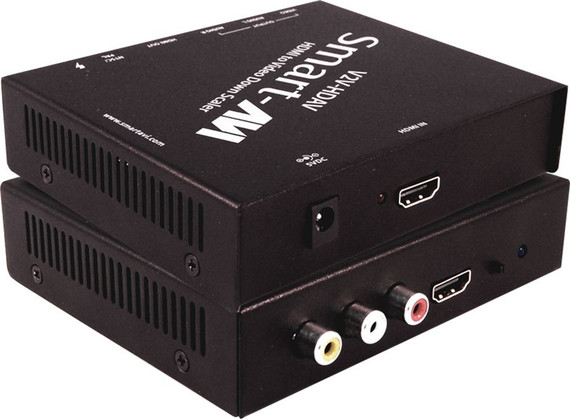

SmartAVI V2V-HDAV
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
V2V-HDAVS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
HDMI to AV Converter- Down-scaler
The V2V-HDAV takes an HDMI input and downscales the signal to a composite video signal, allowing users to bridge the gap between the latest advances in HD signals and the older displays and audio receivers that many systems still rely on and use effectively
Applications
- Video Conferencing
- Video Capture
- Video Walls
- Education
- Security Systems
- Video Modulation
- Multimedia Presentations
- Video Installation
Feature
- Hardware conversion, plug and play without any software driver
- HDMI1.3 compatible
- Support NTSC and PAL two standard TV formats
- One HDMI input, one HDMI output, one AV output, one stereo output
- HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
- Compatible with DVI mode 800x600,1024x768,1280x,720,1280x1024,1920x1080/@60hz
- Supports the HDCP protocol
- Support for HDMI 1.3
- CVBS output: 480i, 576i
SmartAVI V2V-HDAV Specifications
| Mechanical | |
| Height | 1.12 in. (2.84 cm) |
| Width | 4.75 in. (12.06 cm.) |
| Depth | 4 in. (10.16 cm.) |
| Video Amplifiter Bandwidth | 3.2G |
| Input Ports | 1x HDMI |
| Input Video Signal | Video (TMDS) 0.5~1.0 Vpp |
| Output Ports | 3xRCA, 1xHDMI |
| Signal Supports | HDMI Standard, DVI and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165 Mpix/second |
| Input DDC Signal | 5 volts |
| Format | 4:4:4 NS 4:2:2 data input formats |
| Resolution | 480,720p,1080i, HDMI formats |
