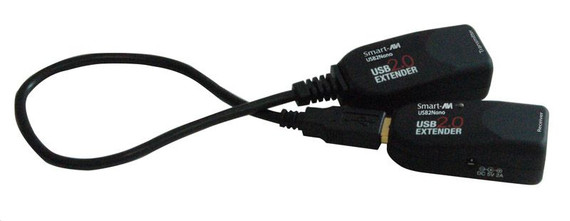

SmartAVI USB2NANO Transmitter
Product Code:
USB2NANO-TXS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
USB 2.0/1.1 Extender Link Transmitter
SmartAVI's USB2Nano Transmitter extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single CAT5 cable. The USB2Nano supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2Nano.
Applications
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
- MAC Keyboard Mouse Extender
Features
- Uses easy to install, inexpensive CAT5
- External power adapter for the receiver unit
- Compact size
- Plug and play
SmartAVI USB2Nano Transmitter Specifications
| Local Upstream Port | USB Type A Male |
| Local Downstream Port | RJ45 Jack |
| Local Power | Bus-powered |
| Remote Upstream Port | USB Type A Female |
| Remote Downstream Port | RJ45 Jack |
| Remote Power | 5VDC-2A |
| Built In Cable Length | 1 foot |
| Interconnect Cable | Standard CAT5/5e/6 Cable |
| Max Cable Length | 150 ft |
