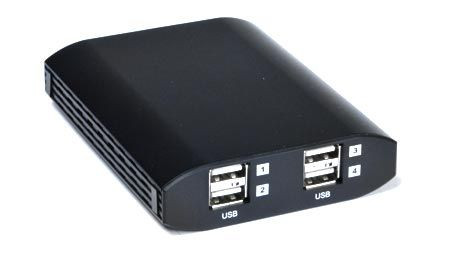

NTI USB-IP-4
Product Code:
USB-IP-4
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
4 x USB 2.0 Over IP Extender, up to 330 ft.
The XTENDEX USB Over IP Extender allows Windows PCs to connect to four USB devices on the same subnet, eliminating the need for locally-attached host PCs. Software drivers are loaded onto a host PC or server, enabling remote devices to communicate with the host, without changing existing application software. USB peripheral devices can be centrally managed and monitored from a remote server or PC via the included USB server software.
Features & Benefits
- Extends USB cabling distance to 330 feet (100 meters).
- Transfer data over a 1000Base-T Gigabit Network.
- Will not communicate to another subnet
- Creates systems redundancy and increases security since host PC can be placed in a remote location.
- Access and monitor devices over a TCP/IP connection.
- Simplifies operations and reduces IT support.
- Supports true plug-and-play functionality.
- USB 1.0, 1.1, and 2.0 compatible.
- Acquires IP address via DHCP when plugged in.
Specifications
| Local USB | |
| Connectors | (4) Female USB Type A; |
| Local Access | |
| Connectors | (1) Female USB Mini Type B for Direct-PC; Local and Network are not available concurrently |
| Network Access | |
| Connectors | (1) RJ45 for Network; Does not support 64-bit systems; Supports 10/100/1000 Base-T networks |
| Communication | Full Duplex Data |
| Data Transfer Rate | 115,200 baud up to 3,935 feet (1,200 meters) 921,600 baud up to 328 feet (100 meters) |
| Mechanical | |
| Width | 4.69 in (119 mm) |
| Depth | 3.46 in (88 mm) |
| Height | 0.98 in (25 mm) |
| Power | |
| Input | 100-240 VAC 50/60Hz via AC Adapter |
| Consumption | 6.2W |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity | 20 to 90% RH, non-condensing |
| Approvals | CE, RoHS |
| Warranty | Two Years |
