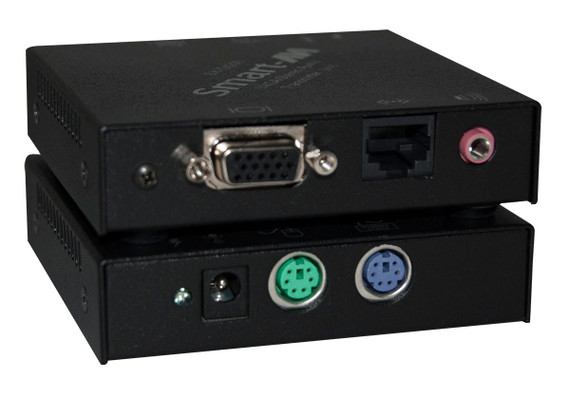

SmartAVI SX-200 Transmitter
Product Code:
SX-TX200S
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Video/Audio/PS2 CAT5 Transmitter
The SX-200 Transmitter device designed to allow access to the PC from a keyboard, mouse, and monitor at a remote location up to 500 ft. away. The extension is accomplished over a single CAT5 cable.
Features
- Provides remote access of the PC with keyboard, mouse and monitor
- Uses single CAT-5 UTP cable to reduce installation costs
- Extends signal to a maximum distance of 500feet
- Supports all PC/AT and PS/2 keyboards with full emulation
- Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored
- Supports full emulation and conversion on all PC/AT and PS/2 mice
- Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
- Supports computer monitors with resolution of up to 1600x1200
- Offers adjustable cable compensation
- Compact metal enclosure
- Supports stereo audio
SmartAVI SX-200 Transmitter Specifications
| Mechanical | |
| Height | 1.5 in. (3.81 cm) |
| Width | 6.25 in. (15.87 cm.) |
| Depth | 3.75 in. (9.52 cm.) |
| Bandwidth | 15KHz |
| Signal Level | 0db unbalanced |
| Input Impedance | 10K ohms |
| Output Impedance | 100 ohms |
| Connector | 3.5 mm stereo jack |
| RS232 | Data up to 57,600 |
| Resolution | 1600x1200 |
| System Connection | RJ45 connected to CAT5 UTP |
| Power | 240V/ 110V 12VDC1.5A |
