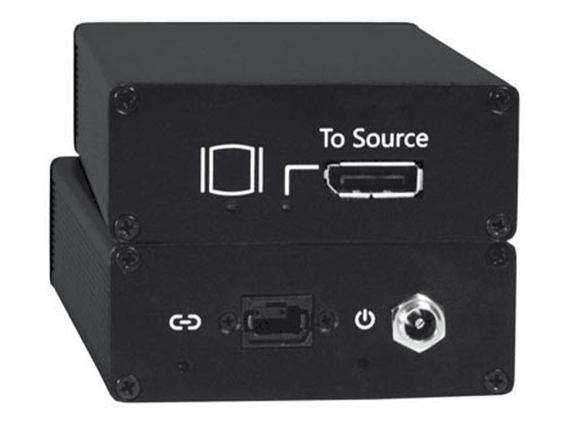

XTENDEX ST-FODP14-MPO 8K DisplayPort Extender

Extend Ultra-HD 8K 4320p 30Hz DisplayPort display up to 984 feet via MPO fiber.

The XTENDEX 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 984 feet (300 meters) via a 12-strand female-to-female multimode OM3 type B MPO fiber optic cable. Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.

XTENDEX ST-FODP14-MPO Features and Benefits

• Signal transmission via a 12-strand multimode 50-micron OM3 type B MPO female-to-female fiber optic cable.
• Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:2:2, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
• DisplayPort features supported:
• DisplayPort 1.4
• Multi-Stream Transport (MST)
• Up to 36-bit Deep Color
• LPCM
• YCbCr 4:4:4, YCbCr 4:2:2, and RGB
• HDR
• Bandwidth up to 23.76 Gbps
• HDCP compliant.
• EDID pass-through for the support of any DisplayPort display device.
• Cables can be installed in conduit prior to extender installation.
• Supports Plug-n-Play specifications.
• Low RFI/EMI for sensitive applications.

XTENDEX ST-FODP14-MPO Product Specifications

• Local Unit
• One female DisplayPort connector for source.
• One male MPO fiber optic port for sending high definition video/audio signals.
• HDCP Compliant
• Remote Unit
• One female DisplayPort connector for displays.
• One male MPO fiber optic port for receiving high definition video/audio signals.
• Supported Video Resolutions:
• Ultra-HD 8K YUV 4:2:2 resolutions (7680x4320 @30Hz)
  - This resolution is only supported when using NTI's DP14-xx-MM cables.
  - Two 3-ft DisplayPort 1.4 cables (DP14-3-MM) included.
• Ultra-HD 4Kx2K YUV 4:4:4 resolutions
• HDTV resolutions to 1080p @144Hz.
• Supports embedded digital audio through DisplayPort compatible displays or audio receivers.
• HDCP compliant
• Max data rate: 23.76 Gbps
• Power
• Local and remote unit:
• Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
• Output: 5VDC, 3A
• Power Consumption:
• Local unit: 3.1W
• Remote unit: 3W
• Max Distance
• Extend to 984 feet (300 meters) using a 12-strand multimode 50-micron OM3 type B MPO fiber optic cable.
• Cables
• Use DP14-xx-MM to connect a DisplayPort source/display up to 15 feet from the transmitter/receiver.
• Two 3-ft DisplayPort 1.4 cables (DP14-3-MM) included.
• ST-FODP14-MPO only supports 8K@30Hz (4:2:2, 8-bit) and 4K@120Hz (4:2:2, 8-bit) resolutions (23.76 Gbps) when used with NTI's DP14-xx-MM cables. All other DP 1.4 cables will support resolutions to 3840x2160@60Hz (4:4:4, 8-bit).
• Use DP8K-FO-xxM-MMLC to connect a DisplayPort source/display up to 100 meters from the transmitter/receiver (not included).
• Maximum resolution supported with ST-FODP14-MPO is 3840x2160@60Hz.
• Use USB3C-DP4K-xx-MM to connect a computer, tablet, or smartphone with USB Type C connector up to 10 feet from the transmitter (not included).
• Supports resolutions to 3840x2160@60Hz.
• Use DP-VGA-xx-MM to connect a VGA display up to 15 feet from the receiver (not included).
• Supports resolutions to 1920x1200@60Hz.
• Use DP-VGA-xx-MM to connect a VGA display up to 15 feet from the receiver (not included).
• Supports resolutions to 1920x1200@60Hz.
• Use a 12-strand multimode 50/125-micron OM3 type B MPO female-to-female fiber optic cable to extend the receiver from the transmitter up to 984 feet (300 meters) (not included).
• Enviornmental
• Operating temperature: 32 to 122°F (0 to 50°C).
• Storage temperature: -4 to 158°F (-20 to 70°C).
• Operating and storage relative humidity: 20 to 80% non-condensing RH.
• Dimensions
• Local and remote unit WxDxH (in): 2.95x5.59x1.14 (75x142x29 mm)
• Regulatory Approval
• CE, FCC, RoHS
• Warranty
• Two Years
