NTI ST-C5VA-R-600
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$305.00
$287.06
-->
(You save
$17.94
)
VGA CAT5 Audio/Video
Remote Receiver
Remote Receiver

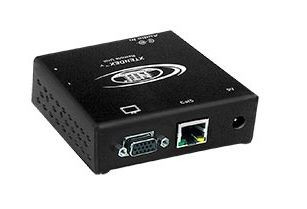

The NTI ST-C5VA-R-600 is a VGA video and audio remote receiver with a maximum extension of 600 feet between the local and remote units. The ST-C5VA-R-600 works with the NTI CAT5 extenders and KVM Switches to create a high performance audio/video signal routing system.
- Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for video-only units and automatically for audio/video units.
- When using CAT6, some degradation may be experienced depending on the length of the cable.
NTI ST-C5VA-R-600 Specifications:
| Video | |
| Connector | Female 15-pin HD connector |
| Supported resolution | up to 1920x1440 |
| Output impedance | 75 Ohms. |
| Maximum output level | 1.45Vp-p. |
| Audio | |
| Stereo audio plug | 3.5mm |
| Frequency response | 20 Hz to 20 kHz, +/-1dB. |
| Signal-to-Noise Ratio (SNR) | 76 dBA. |
| Total Harmonic Distortion and Noise (THD+N) | 0.017% |
| Stereo crosstalk | -70 dB. |
| Maximum output levels | 3.1Vp-p (line level) |
| Line level output | supports multimedia speakers |
| Require powered speakers | |
| Power | |
| Operating Voltage | 110 or 220 VAC |
| Power Frequency | 50 or 60 Hz via AC adapter |
| Power Consumption | 10W |
| Add the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment. | |
| MTBF | 82,214 hrs |
| Environmental | |
| Operating temperature | 32°F to 100°F (0°C to 38°C) |
| Storage temperature | -20°F to 140°F (-30°C to 60°C) |
| Relative Humidity | 17 to 90% non-condensing RH |
| Regulatory Approvals | CE |
