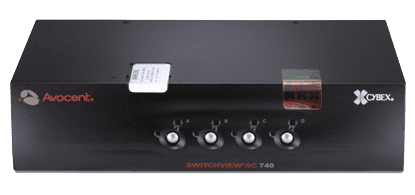

Avocent SwitchView SC740

The Avocent SwitchView SC740-001 dual-head, 4-port, single-user KVM,  offers proven, secure access for any desktop environment where security is mandatory. NIAP validated to EAL2+, the SC740 secure KVM switch provides multiple levels of physical security, and controlled USB connectivity (limited to keyboard and mouse only). Consolidate multiple workstations of varying security classification levels with one keyboard, monitor and mouse without compromising network security.

The Avocent SwitchView SC740 switch includes multiple layers of security including tamper-proof hardware security at the desktop. In addition, the SC740 ensures that only the keyboard and mouse function on target computers, by constantly monitoring all devices attached to the console ports. The SC640 ignores communication from all other USB devices (such as flash drives, hard disk drives, cameras and printers) when switching data to the target. In situations where the only USB port(s) are those enabled on the target computer, the SwitchView SC switch will not introduce security vulnerabilities.

Avocent SwitchView SC740 Secure KVM Switch Back View

Avocent SC740 Features & Benefits:

• NIAP Common Criteria validated to EAL2+.
• Software Security. U.S. designed firmware: allows only keyboard and mouse human interface devices (HIDs) to switch to the target computers.
• Physical security:
  • Tamper-evident tape: A visual indication of an attempt to gain access to the internal components of the switch
  • Locked memory: Prevents tampering and reprogramming of the firmware
• Secure channels: Four fully secure channels isolated to 60db. Safely switch between computers operating at different classification levels without compromising network security.
• Clears buffer: Automatically clears the keyboard buffer immediately after data is transmitted through the switch, so no data is ever left in the switch

Avocent SC740 Specifications:
