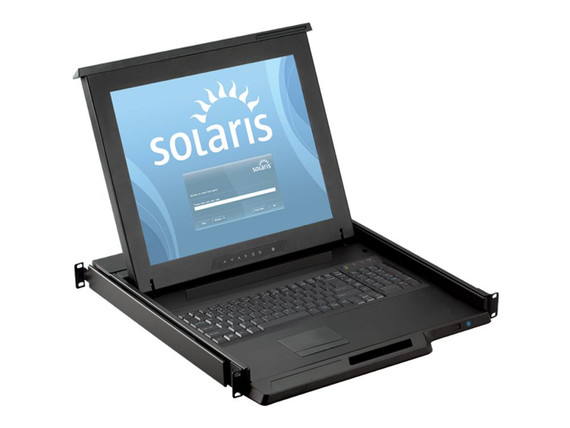

Cyberview S119

No reviews yet
• Available ⓘ This product is available for order. Lead times vary by product and manufacturer.

A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time

Lead time and availability are subject to change without notice.
MSRP: $1,360.00
$1,255.00
(You save $105.00 )
-->

1U Rackmount Monitor Drawer 19" LCD, Sun function keys, w/SUN Native LCD resolution

The S119 19 inch rack mount LCD is a combination of keyboard, mouse and monitor into a drawer with features such 1U slim design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.

Austin Hughes CyberView S119 Diagram

S119 Features:

  • 1U 19" LCD console drawer
  • Direct support for SUN Micro 1152x900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm ( 19.7" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available
S119 SUN keyboard Options

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple integrated KVM Switch options
  • 2-post rack mounting brackets ( ORB-2.1 )

S119 Package Contents

CyberView S119 Package Contents
  • (1) S119 Console Drawer
  • (1) CX-6B 6ft HDMI console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

S119 Resources

CyberView S119 Diagram S119 Brochure (PDF)
S119 Manual (PDF)
S119 Integrated KVM Manuals (Link)

S119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console27.9 lbs. (12.7 kg)
Console w/ KVM30.1 lbs. (13.7 kg)
Gross Weight
Single Console38.1 lbs. (17.3 kg)
Console w/ KVM43.3 lbs. (19.7 kg)
Mounting Distance
Single Console20.1 ~ 29.1 in
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 in
(510 ~ 840 mm)
Console Ports
Video InputVGA + HDMI
KB / MS USB
VGA console 6ft cable (CB-6A)
--OR--
HDMI console 6ft cable (CX-6B)
Drawer end : DB-15 ( VGA ) + USB
Server end : VGA + USB type A
Drawer end : HDMI + USB ( USB KB / MS )
Server end : HDMI + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Direct resolution1152 x 900
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC, CE & CCC certified
Safetyc UL us, CE / LVD & CCC certified
EnvironmentRoHS2 & REACH compliant

S119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView S119 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-S119-MUIP1613S119-MUIP3213
121-S119-MUIP1614S119-MUIP3214
112-S119-MUIP1624S119-MUIP3224
110-S119-MU1602S119-MU3202
120-S119-MU1603S119-MU3203
130-S119-MU1604S119-MU3204

Austin Hughes CyberView S119 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101S119-UIP802S119-UIP1602S119-UIP3202
110S119-U802S119-U1602S119-U3202
100S119-U801S119-U1601S119-U3201

Austin Hughes CyberView S119 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100S119-1201D

Austin Hughes CyberView S119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111S119-MIP813S119-MIP1613-
121S119-MIP814S119-MIP1614-
112S119-MIP824S119-MIP1624-
110S119-M802S119-M1602-
120S119-M803S119-M1603-
130S119-M804S119-M1604-

Austin Hughes CyberView S119 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101S119-IP802S119-IP1602-
110S119-802S119-1602-
100S119-S801S119-S1601-

Austin Hughes CyberView S119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101S119-IP802HS119-IP1602H-
110S119-802HS119-1602H-
100S119-801HS119-1601H-

Austin Hughes CyberView S119 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100S119-801S119-1601-
