Cyberview RKP219-IP802
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Replacement:
53853
$1,730.00
-->
2U Rackmount Monitor Drawer 19" Samsung LCD
8-port 2-console IP KVM
8-port 2-console IP KVM

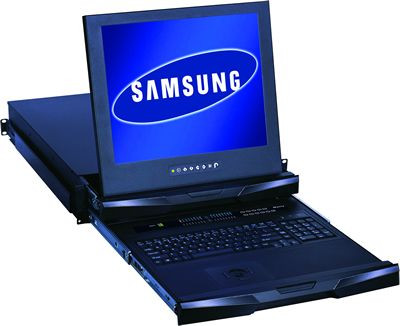

The Cyberview RKP219-IP802 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.
The following keyboard options are available for the RKP219-IP802:
Cyberview RKP219-IP802 Features:
- 2U 19" TFT LCD screen
- Allow viewing through closed glass cabinet door
- Multiple keyboard language selections with either touchpad or trackball
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- (8) 6' KVM cables included
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
| Product Dimensions (HxWxD) | 3.5 x 17.4 x 23.6 in. (8.8 x 44.2 x 60 cm.) |
| Package Dimensions (HxWxD) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| PC port | 8 |
| Remote Console connector | RJ45 8P8C |
| Remote Console Port | 1 |
| Serial port | 1 |
| Local Console Port | - |
| PC Selection | OSD |
| LED | 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) |
| On screen display control | Yes |
| Scan Intervals | 5~99sec |
| Keyboard and mouse emulation | PS/2 |
| VGA Resolution (Max.) | Local: 1600x1200 Remote: 1280x1024 |
| Bandwidth | 200Mhz |
| Cascade Level | 8 levels |
| PC Connection | 120/128 |
| Remote Web-based access | Internet, LAN/WAN, or dial up modem |
| Housing | Metal |
| KVM Switch Power Adapter | DC 12V |
2U Rackmount Monitor Drawer 19" Samsung LCD
8-port 2-console IP KVM
8-port 2-console IP KVM
The Cyberview RKP219-IP802 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.
The following keyboard options are available for the RKP219-IP802:
Cyberview RKP219-IP802 Features:
- 2U 19" TFT LCD screen
- Allow viewing through closed glass cabinet door
- Multiple keyboard language selections with either touchpad or trackball
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- (8) 6' KVM cables included
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
| Product Dimensions (HxWxD) | 3.5 x 17.4 x 23.6 in. (8.8 x 44.2 x 60 cm.) |
| Package Dimensions (HxWxD) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| PC port | 8 |
| Remote Console connector | RJ45 8P8C |
| Remote Console Port | 1 |
| Serial port | 1 |
| Local Console Port | - |
| PC Selection | OSD |
| LED | 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) |
| On screen display control | Yes |
| Scan Intervals | 5~99sec |
| Keyboard and mouse emulation | PS/2 |
| VGA Resolution (Max.) | Local: 1600x1200 Remote: 1280x1024 |
| Bandwidth | 200Mhz |
| Cascade Level | 8 levels |
| PC Connection | 120/128 |
| Remote Web-based access | Internet, LAN/WAN, or dial up modem |
| Housing | Metal |
| KVM Switch Power Adapter | DC 12V |
