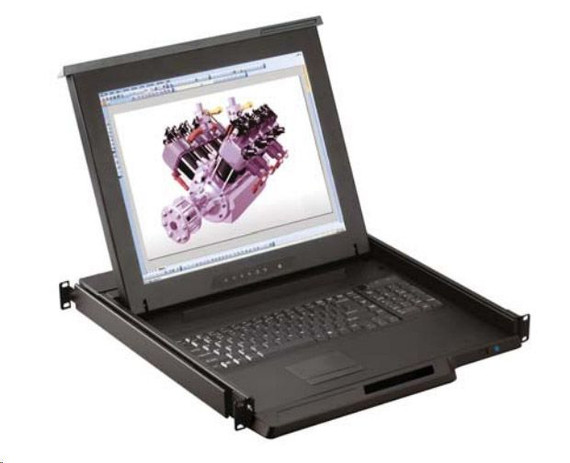

Cyberview RKP119-1602
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$2,453.00
$2,263.00
-->
(You save
$190.00
)
1U Rackmount Monitor Drawer 19" LCD
16-port 2-console PS/2 KVM
16-port 2-console PS/2 KVM
The RKP119 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.
The following keyboard options are available:
- 1U 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth design of 460mm and 500mm respectively
- New enhanced aesthetics with molded front handle
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
Advanced Features with KVM:
- Cascade for use up to 128 servers.
- Name servers up to 16 characters long.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin DB connector at switch side.
RKP119-1602 Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (441.6 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Weight | 27.9 lbs. (12.7 kg.) |
| Package Dimensions (H x W x D) | 5.5 x 23.2 x 31.8 in. (140 x 590 x 808 mm.) |
| Package Weight | 38.1 lbs. (17.3 kg.) |
| Environmental | |
| Operating temperature | 0 to 50°C Degree |
| Storage temperature | -5 to 60°C Degree |
| Relative humidity | 5~90%, non-condensing 10G acceleration ( 11 ms duration) |
| Shock | 5~500Hz 1G RMS random vibration |
| Vibration | Adjustable ranges from 15.3" to 35.2" (390 to 895mm) |
| LCD Screen | |
| Size | 19" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Active area (mm) | 376x301 |
| Signal Input | VGA |
| Integrated KVM Switch | |
| KVM port | 16 |
| Connector | DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable, up to 6, 10, & 15 feet |
| Local Console | LCD console drawer version (up to 1920x1080/ 1920x1200) |
| IP Remote Console | |
| Connector | RJ45 Ethernet |
| User management | 15-user login, 1x active user |
| Resolution | Up to 1600x1200 |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
