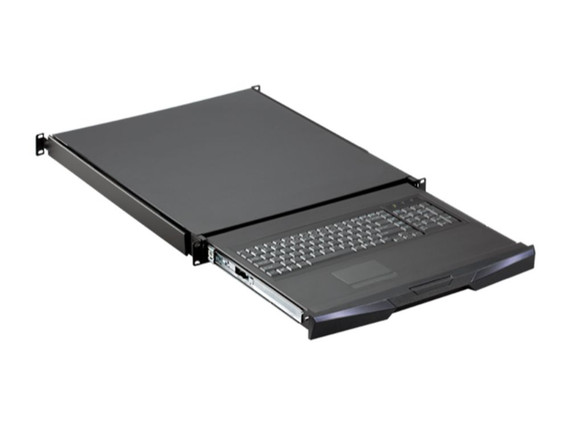

CyberView RK-1Se
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$698.00
$612.00
-->
(You save
$86.00
)
Sun Touchpad/Keyboard Rackmount Console Drawer - optional Integrated KVM Switch
Cyberview RK-1Se is a 1U Rackmount SUN Micro Keyboard Drawer with Touchpad, and a full range of various KVM Switch Options. RK1 Series features a gel wrist pad, adjustable brackets, a two point lock, and modular keyboard & interface options, so as to be the most effective tool for an administrator to use to control multiple PCs.
Cyberview RK-1Se Rack Keyboard Benefits
- SUN Micro Keyboard (US Standard) with touchpad
- Keyboard drawer with full range of integrated KVM Switch options
- Enhanced aesthetics with new molded front panel & two point lock
Integrated KVM Options (Contact us for pricing / availability)
- Ports
- 8, 12, 16, or 32
- Users
- 1-2 (1 Local, 0-1 IP Web Browser, 0-1 Extended Remote)
- Video Input
- DVI, VGA, HDMI, DisplayPort
- Keyboard/Mouse
- USB or PS2
- KVM Type
- Cat6 or Combo DB-15
RK-1Se Package Contents
- (1) RK-1Se Rack Mount Keyboard
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RK-1Se Resources
RK-1Se Brochure (PDF)
RK-1Se Manual (PDF)
RK-1Se Integrated KVM Manuals (Link)
CyberView RK-1Se Specifications
| Mechanical | |||||
| Product Dimensions (H x W x D) |
| ||||
| Package Dimensions (H x W x D) |
| ||||
| Net Weight |
| ||||
| Gross Weight |
| ||||
| Mounting Distance | 23.7 ~ 31 inch (600 ~ 787 mm) | ||||
| Casing Color | Black ( RAL 9005 ) | ||||
| Console Port | |||||
| Keyboard / Mouse | Combo ( USB or PS2 ) | ||||
| Keyboard / Mouse 6ft cable (EKC-2) | Drawer end : DB-15 ( USB KB / MS ) Server end : USB type A | ||||
| Environmental | |||||
| Operating Temperature | 0 to 55°C Degree | ||||
| Storage Temperature | -20 to 60°C Degree | ||||
| Operating Humidity | 20~90%, non-condensing | ||||
| Relative Humidity | 5~90%, non-condensing | ||||
| Operating Altitude | 16,000 ft | ||||
| Non-operating Altitude | 40,000 ft | ||||
| Shock | 10G acceleration (11ms duration) | ||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||
| Regulatory Compliance | |||||
| EMC | FCC & CE certified | ||||
| Safety | CE / LVD certified | ||||
| Environment | RoHS2 & REACH compliant |
Sun Touchpad/Keyboard Rackmount Console Drawer - optional Integrated KVM Switch
Cyberview RK-1Se is a 1U Rackmount SUN Micro Keyboard Drawer with Touchpad, and a full range of various KVM Switch Options. RK1 Series features a gel wrist pad, adjustable brackets, a two point lock, and modular keyboard & interface options, so as to be the most effective tool for an administrator to use to control multiple PCs.
Cyberview RK-1Se Rack Keyboard Benefits
- SUN Micro Keyboard (US Standard) with touchpad
- Keyboard drawer with full range of integrated KVM Switch options
- Enhanced aesthetics with new molded front panel & two point lock
Integrated KVM Options (Contact us for pricing / availability)
- Ports
- 8, 12, 16, or 32
- Users
- 1-2 (1 Local, 0-1 IP Web Browser, 0-1 Extended Remote)
- Video Input
- DVI, VGA, HDMI, DisplayPort
- Keyboard/Mouse
- USB or PS2
- KVM Type
- Cat6 or Combo DB-15
RK-1Se Package Contents
- (1) RK-1Se Rack Mount Keyboard
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RK-1Se Resources
RK-1Se Brochure (PDF)
RK-1Se Manual (PDF)
RK-1Se Integrated KVM Manuals (Link)
CyberView RK-1Se Specifications
| Mechanical | |||||
| Product Dimensions (H x W x D) |
| ||||
| Package Dimensions (H x W x D) |
| ||||
| Net Weight |
| ||||
| Gross Weight |
| ||||
| Mounting Distance | 23.7 ~ 31 inch (600 ~ 787 mm) | ||||
| Casing Color | Black ( RAL 9005 ) | ||||
| Console Port | |||||
| Keyboard / Mouse | Combo ( USB or PS2 ) | ||||
| Keyboard / Mouse 6ft cable (EKC-2) | Drawer end : DB-15 ( USB KB / MS ) Server end : USB type A | ||||
| Environmental | |||||
| Operating Temperature | 0 to 55°C Degree | ||||
| Storage Temperature | -20 to 60°C Degree | ||||
| Operating Humidity | 20~90%, non-condensing | ||||
| Relative Humidity | 5~90%, non-condensing | ||||
| Operating Altitude | 16,000 ft | ||||
| Non-operating Altitude | 40,000 ft | ||||
| Shock | 10G acceleration (11ms duration) | ||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||
| Regulatory Compliance | |||||
| EMC | FCC & CE certified | ||||
| Safety | CE / LVD certified | ||||
| Environment | RoHS2 & REACH compliant |
