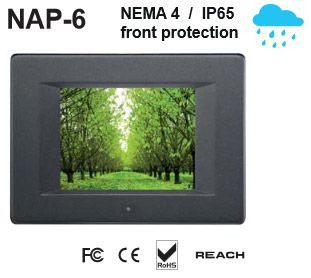

UltraView NAP-6
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Aspect Ratio:
0.16875
$870.00
-->
6.5" LED LCD Display with NEMA 4 / IP65 Protection
Display Features & Benefits
- 6.5" LCD with resolution 640 x 480
- Panel-mount, VESA mount
- 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Rugged construction against external impact
- Standard with VGA
NAP-6 Resources & Downloads
NAP-6 Datasheet (PDF)
NAP-6 Manual (PDF)
UltraView NAP-6 Specifications
| Mechanical | |
| Height | 7.2 in. (18.2 cm.) |
| Width | 10.0 in. (25.5 cm.) |
| Depth | 2.7 in. (6.8 cm.) |
| Weight | 4.6 lbs. (2.1 kg.) |
| Package Dimensions (HxDxW) | 20.3 x 4.6 x 16.9 inch (515 x 117 x 429 mm) |
| Package Weight | 9.0 lbs. (4.1 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 6.5" TFT |
| Resolution | 640 x 480 |
| Brightness (cd/m2) | 800 |
| Colors | 262 K |
| Contrast Ratio (typ) | 600:1 |
| Viewing angle (H/V) | 160° x 140° |
| Active area (mm) | 132 x 99 |
| Signal Input | VGA |
6.5" LED LCD Display with NEMA 4 / IP65 Protection
Display Features & Benefits
- 6.5" LCD with resolution 640 x 480
- Panel-mount, VESA mount
- 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Rugged construction against external impact
- Standard with VGA
NAP-6 Resources & Downloads
NAP-6 Datasheet (PDF)
NAP-6 Manual (PDF)
UltraView NAP-6 Specifications
| Mechanical | |
| Height | 7.2 in. (18.2 cm.) |
| Width | 10.0 in. (25.5 cm.) |
| Depth | 2.7 in. (6.8 cm.) |
| Weight | 4.6 lbs. (2.1 kg.) |
| Package Dimensions (HxDxW) | 20.3 x 4.6 x 16.9 inch (515 x 117 x 429 mm) |
| Package Weight | 9.0 lbs. (4.1 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 6.5" TFT |
| Resolution | 640 x 480 |
| Brightness (cd/m2) | 800 |
| Colors | 262 K |
| Contrast Ratio (typ) | 600:1 |
| Viewing angle (H/V) | 160° x 140° |
| Active area (mm) | 132 x 99 |
| Signal Input | VGA |
