Cyberview N119

No reviews yet
• Available ⓘ This product is available for order. Lead times vary by product and manufacturer.

A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time

Lead time and availability are subject to change without notice.
MSRP: $1,290.00
$1,190.00
(You save $100.00 )
-->

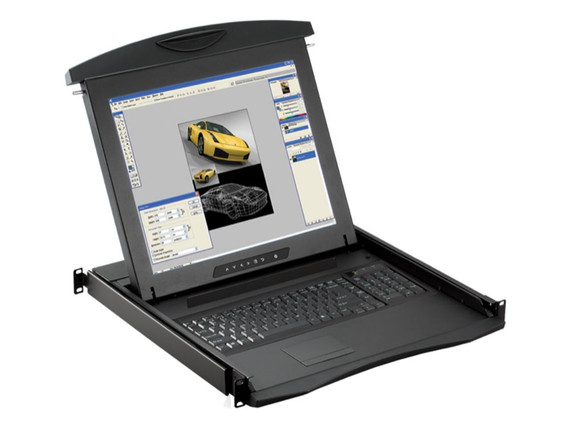

1U 19" LED Rack Mount Monitor Keyboard Drawer w/ Touchpad or Trackball

The N119 is a 1U Rackmount LCD Monitor with 19" LCD. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

Austin Hughes CyberView N119 Diagram

N119 Features & Benefits:

  • 1U 19" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" ) only
  • Enhanced aesthetics with molded front handle and two point lock
"Ne" style keyboard included with N119

Optional Configurations (Contact us for availability)

  • DVI-D / HDMI 1.2 video input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple integrated KVM Switch options

N119 Package Contents

CyberView N119 Package Contents
  • (1) N119 Console Drawer
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

N119 Resources

CyberView N119 Diagram N119 Brochure (PDF)
N119 Manual (PDF)
N119 Integrated KVM Manuals (Link)

N119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console27.5 lbs. (12.5 kg)
Console w/ KVM29.7 lbs. (13.5 kg)
Gross Weight
Single Console37.4 lbs. (17 kg)
Console w/ KVM40.5 lbs. (18.4 kg)
Mounting Distance
Single Console20.1 ~ 29.1 inch
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 inch
(510 ~ 840 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

The N119 series is also known as the N-119. The N119e comes with an integrated touchpad, while the N119b comes with an integrated trackball.


N119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView N119 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-N119-MUIP1613N119-MUIP3213
121-N119-MUIP1614N119-MUIP3214
112-N119-MUIP1624N119-MUIP3224
110-N119-MU1602N119-MU3202
120-N119-MU1603N119-MU3203
130-N119-MU1604N119-MU3204

Austin Hughes CyberView N119 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101N119-UIP802N119-UIP1602N119-UIP3202
110N119-U802N119-U1602N119-U3202
100N119-U801N119-U1601N119-U3201

Austin Hughes CyberView N119 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100N119-1201D

Austin Hughes CyberView N119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111N119-MIP813N119-MIP1613-
121N119-MIP814N119-MIP1614-
112N119-MIP824N119-MIP1624-
110N119-M802N119-M1602-
120N119-M803N119-M1603-
130N119-M804N119-M1604-

Austin Hughes CyberView N119 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101N119-IP802N119-IP1602-
110N119-802N119-1602-
100N119-S801N119-S1601-

Austin Hughes CyberView N119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101N119-IP802HN119-IP1602H-
110N119-802HN119-1602H-
100N119-801HN119-1601H-

Austin Hughes CyberView N119 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100N119-801N119-1601-
