Cyberview N117-S801
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,765.00
$1,629.00
-->
(You save
$136.00
)

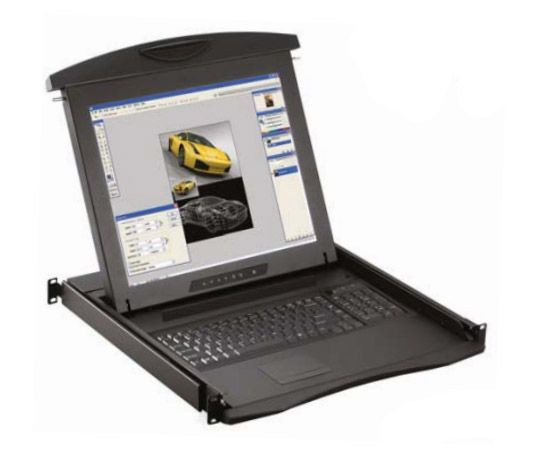

1U Rackmount Monitor Drawer 17"LCD
8-port USB KVM SwitchThe N117-S801 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and 8 port USB KVM Switch.
8-port USB KVM SwitchThe N117-S801 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and 8 port USB KVM Switch.
This model comes with either of the following keyboard options:
N117-S801 Rackmount LCD Features:
- 104-key keyboard with either touchpad or trackball
- 1U 17" LCD console drawer
- Single or "One Man" installation slides for easy, quick installation
- Slide rails with fixed positions to prevent drawer movement when typing
- Short depth design of 500mm (19.7") only
- Enhanced aesthetics with molded front handle and two point lock
Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 590 x 768 mm.) |
| Net Weight | 27.1 lbs. (12.3 kg.) |
| Gross Weight | 36 lbs. (16.5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 65°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 40 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 17" TFT |
| Max. Resolution | 1280 x 1024 |
| Brightness (cd/m_) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 1° |
| Active area (mm) | 338 x 270 |
| Signal Input | VGA |
| KVM Port | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Regulation Approval | FCC, CE |
1U Rackmount Monitor Drawer 17"LCD
8-port USB KVM SwitchThe N117-S801 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and 8 port USB KVM Switch.
8-port USB KVM SwitchThe N117-S801 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and 8 port USB KVM Switch.
This model comes with either of the following keyboard options:
N117-S801 Rackmount LCD Features:
- 104-key keyboard with either touchpad or trackball
- 1U 17" LCD console drawer
- Single or "One Man" installation slides for easy, quick installation
- Slide rails with fixed positions to prevent drawer movement when typing
- Short depth design of 500mm (19.7") only
- Enhanced aesthetics with molded front handle and two point lock
Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 590 x 768 mm.) |
| Net Weight | 27.1 lbs. (12.3 kg.) |
| Gross Weight | 36 lbs. (16.5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 65°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 40 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 17" TFT |
| Max. Resolution | 1280 x 1024 |
| Brightness (cd/m_) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 1° |
| Active area (mm) | 338 x 270 |
| Signal Input | VGA |
| KVM Port | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Regulation Approval | FCC, CE |
