NTI KEEMUX-P16
Product Code:
KEEMUX-P16
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code

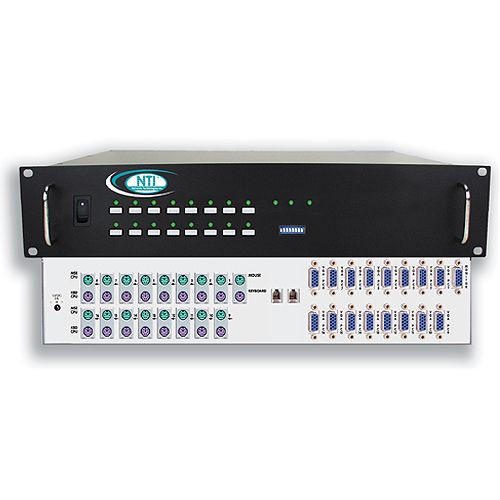

NTI 16 Port KVM Switch (KEEMUX-P16)
The NTI KEEMUX-P16 is a 16 port PS/2 rackmount KVM switch. The internal autoboot circuitry allows all devices to boot simultaneously and error-free without the need for a keyboard, monitor and mouse on each device. You may switch between specific devices manually on the switch or via keyboard. LEDs are featured on the unit for a visual indication of switch mode status and connection status between the user and specific device. The KEEMUX-P16 is compatible with all standard PS/2 mice. A VEXT-xx-MM cable and VVKINT-xx-MM cable are required, but not included, for connection from the switch to each device. This unit is mounted horizontally in 2U of rack space. Audio is available via 3.5mm stereo jack and plugs. This item comes with a standard 12 month warranty from the date of purchase.
KEEMUX-P16 Features:
- PS/2 KVM
- 1 user, 16 port
- Manual and remote control
- LED indicators
- Audio option via 3.5mm
- 12 month warranty
KEEMUX-P16 Specifications:
| Mechanical | |
| Height | 3.5 in. (88.9 mm.) |
| Width | 19 in. (482.6 mm.) |
| Depth | 10 in. (254 mm.) |
| Weight | 10 lbs. (4.54 kg.) |
| Environmental | |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Storage Temperature | -20°F to 140°F (-30°C to 60°C) |
| Supported Hardware | |
| Computers | IBM PC-AT, PC-AT Clone or PS/2 device |
| Monitor | 1900x1200 resolution |
| Peripherals | PS/2 mice and PS/2 keyboard |
