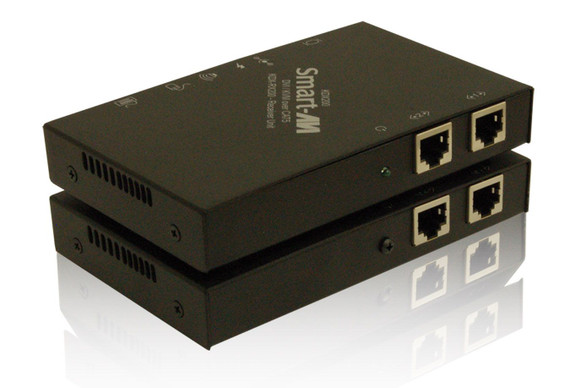

SmartAVI KDX-200 Receiver
Product Code:
KDX-RX200S
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
DVI-D/Audio/PS2 CAT6 STP Receiver
The KDX-200 extends any DVI-D signal, keyboard, mouse and audio up to 200 feet with two CAT5 cables. *Receiver only.
Features
- Top Image Quality at all Resolutions.
- Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
- User selectable: DCC-Information used from the remotely located monitor, from the locally located monitor or from an internal DDC table.
- Basic device to remotely locate monitor, keyboard/mouse and sound.
- Supports PS2-keyboard/mouse.
- Maximum screen resolution on all distances: 250 ft w/ STP CAT5e.
- Compatible with all operating systems.
- Compatible with all major KVM switches.
- Rack mount options (19"): Mount up to 4 devices in a 19"/1U rack mount kit. This saves expensive rack space.
- Supports stereo sound
SmartAVI KDX-200 Receiver Specifications
| Mechanical | |
| Height | 0.82 in. (2.08 cm) |
| Width | 6.25 in. (15.87 cm.) |
| Depth | 6.12 in. (15.54 cm.) |
| Weight | 0.4 lbs |
| Resolution | 1920x1200 @ 60 Hz |
| Keyboard | Minidin color coded, supports PS2 compatible |
| Mouse | Minidin color coded, PS/2, wheelmouse, 5 button mouse |
| Audio Signal Type | Stereo Audio |
| Bandwidth | 15MHz, 0db |
| Impedance | 100 Phm |
| Connector | 3.5 mm mini jack, Female |
| Power Supply | 5VDC |
| Systems | Windows 2000, XP and 2003 Linux |
