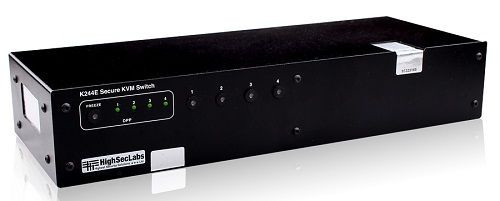

SmartAVI K244E-SH
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
K244E-SH
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
4 Port Dual-Head DVI Secure EAL4+ KVM Switch with Audio & CAC
Features
- Validated to EAL 4+ security standards
- Complies with Common Criteria Protection Profile 2.1
- Manage four connected dual-head computers in isolation
- Advanced scaling enables no quality loss
- Unidirectional data paths
- Dedicated processors for emulation
- USB port protection
SmartAVI K244E-SH Unit Rear
With four connected dual-head computers, the K244 offers impressive levels of seamless communications even when connecting computers that are on different levels of security clearance and Internet access. Users can set up two displays to get the most out of dual-head computers. The K244 utilizes unidirectional optical data-diodes which insulates all connections from any possible points of data leakage among peripherals. Every K244 secure KVM switch is rigorously and extensively tested to ensure it will remain stalwart against any known form of KVM security attacks. The unit has been certified to meet EAL 4+ standards to assure it provides the highest level of security possible.
This product offers the highest possible separation between two connected computers. The K244 uses unidirectional optical data diodes to prevent any potential leakage between the highly-isolated peripheral channels. This KVM can also be used to securely filter and lock USB ports preventing data export / import through mass-storage devices by hardware.
| SPECIFICATIONS | |
|---|---|
| Host Computer Input Ports | 4 x isolated USB Type B and Audio input ports to connect computers 4 x isolated keyboard and mouse device emulators 4 dual-head DVI-I female connectors |
| Console Ports | USB Type-A jacks for keyboard and mouse RDC Port to connect HSL Remote Desktop Controller (RJ-45 jack) Channels isolation with optical data-diode and two separate host emulators 2 DVI-i female connectors for user displays |
| User Control | Channel switching via Virtual Desktop Technology (VDT) - KM operation will switch to current cursor location Manual channel selection via Hotkeys Status LED's in front panel to indicate current selected channel User may set mouse speed, acceleration other cursor behaviors |
| Power | AC input cable IEC-3 jack Internal power supply. Power input 90-240V AC, 0.2A maximum at 110VAC |
| Security Functions | USB ports supporting only keyboard and mouse through host emulation and strong filtering Optical Data Diode assures unidirectional flow from devices to computers Changing Firmware (on ROM) cannot cause leakage between channels or data export Isolated power supplies for each device emulator Battery powered anti-tampering system to disable product in case of mechanical intrusion Special holographic Temper Evident Labels |
| Peripheral security | USB ports supporting only keyboard and mouse through host emulation Data-diode assures USB unidirectional flow from devices to host Firmware change can not cause leakage between channels or data export |
| Environmental | Temperature range: Operating - 0°C to 40°C (32°F to 104°F); Storage - -20°C to 60°C (-4°F to 140°F) Humidity: Operating - 20 to 80% non condensing; Storage - 10 to 90% non condensing Altitude: 0 to 10,000 ft |
| Regulatory Compliance | Safety: UL/cUL60950,EN60 950 EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI |
| Security Accreditations | Common Criteria EAL 4+ certified Complies with latest NIAP Peripheral Sharing Switch (PSS) For Human Interface Devices Ver 2.1 |
| Physical Characteristics | Dimensions: 135(D) x 320 (W) x 75 (H) mm / 5.3 (D) x 12.6 (W) x 3.0 (H) inch Device weight: 1.8 Kg. (4.0 lbs.) Shipping Weight: 2.2 Kg (4.8 lbs) without cables |
