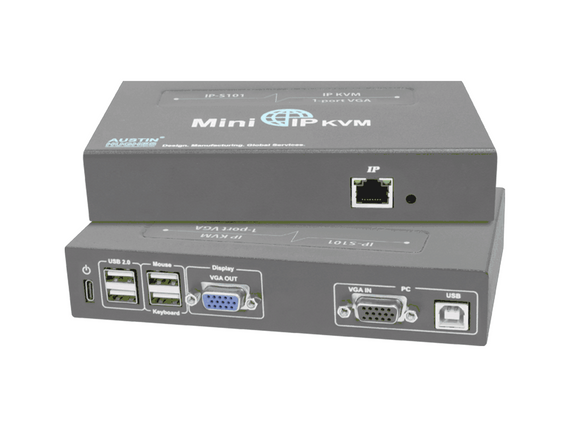

Cyberview IP-S101
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Video Input:
VGA
MSRP:
$768.00
$673.00
-->
(You save
$95.00
)
Cyberview IP KVM Extender
Combo VGA + USBAustin Hughes IP-S101
Combo VGA + USB
Now supporting 1080p over IP!
Austin Hughes IP-S101
VGA 1-port Mini IP KVM
IP-S101 Benefits
- IP remote access to PC(s) with VGA connection
- 1-port, 2-port, 4-port models for selection
- OS Support : Mac / Windows / Linux
- Stylish mini size chassis for limited spacing environment
- Powerful quad-core processor for high quality video & image via IP
- Enterprise level IP authentication
- User-friendly HTML-base & Java-free remote access over IP
- Support BIOS access, no need to run OS on the connected PC(s)
- Hot pluggable, no software or drivers required
- 2 x USB hub port share peripheral devices among PC(s)
IP-S101 Package Contents
- (1) VGA 1-port Mini IP KVM
- (1) USB-C to USB-A 6ft power cable
- (1) Mounting set
IP-S101 Resources
IP-S101 Manual (PDF)
Austin Hughes IP-S101 Specifications
| IP Console | |
| Connector | 1000 BaseT Gigabit Ethernet Port ( RJ45 ) |
| User Management | 1 x active user, 15-user login |
| Network Protocol | DHCP / BOOTP / DNS |
| Security | TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s) |
| Browser | Safari, Chrome, Firefox, Edge, etc. |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| KVM Port | |
| Port number | 1 / 2 / 4 |
| Connector | VGA + USB-B ( Video + KB / MS ) |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Local Console | |
| Video | 1 x VGA |
| Keyboard / Mouse | 2 x USB-A |
| USB Hub 2.0 | 2 x USB-A |
| Resolution (max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Compatibility | |
| Hardware Compatibility | Mac / HP / IBM / Dell PC, Server and Blade Server |
| OS Support | Mac / Windows / Linux |
| Compliance | |
| EMC | FCC & CE |
| Safety | CE / LVD & UKCA |
| Environment | RoHS3 & REACH |
| Environment | |
| Operating Temp. | 0 to 55°C degree |
| Storage Temp. | -20 to 60°C degree |
| Operating Humidity | 20 to 90%, non-condensing |
| Storage Humidity | 5 to 90%, non-condensing |
| Operating Altitude | 16,000 ft |
| Non-Operating Altitude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | USB-C |
| Consumption | Max. 11W |
| Physical | |
| Product (WxDxH) | 160 x 87 x 30 (mm) 6.30 x 3.43 x 1.18 (inch) |
| Packing (WxDxH) | 358 x 257 x 55 mm 14.09 x 10.12 x 2.17 inch |
| Weight / Net Gross | 0.472 kg / 1.04 lb 0.772 kg / 1.702 lb |
| Chassis Color | Dark |
| Chassis Materials | Steel |
