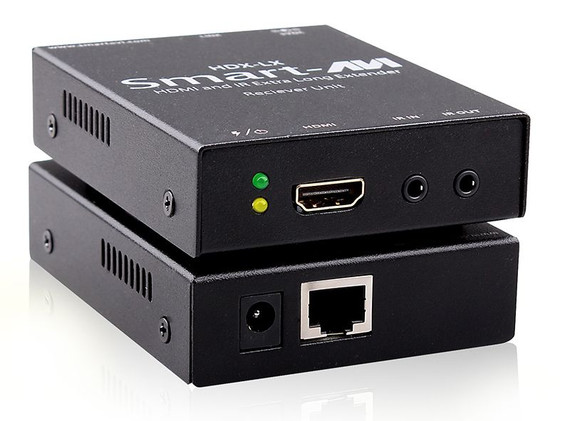

SmartAVI HDX-LXS
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
HDX-LXS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
HDMI & IR Extender Over CAT5
Watch and Control HDTV 1080p video up to 250ft from the source using HDBaseT Technology.
The HDX-LX uses a CAT5 UTP cable to extend HDMI signals - including high-definition TV - up to 250ft (75m) from the sourceby using HDBaseT technology. It is capable of transmitting high-resolution HD video up to 1080p. Controlling a video source iseasy with the devices bi-directional IR extension. Whether it's for a home entertainment system or a commercial installation, theHDX-LX delivers flexibility and control.
Applications for the HDX-LXS include:
- Home Theater
- Corporate/Educational Presentations
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- Educational Environments with Remote Displays
SmartAVI HDX-LXS Features:
- Extends HDMI output over one CAT5 UTP cable
- Extends IR control signals for remote control
- Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D
- Data signals up to 3.4Gbps
- HDMI 1.3 and HDCP compliance
- IR communication is bi-directional
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 250 feet (75 meters) from the source
- Uses HDBaseT Technology
SmartAVI HDX-LXS Diagram
SmartAVI HDX-LXS Specifications:
| Video | |
| Color Depth | Deep Color 36/30/24 Bit at 1080p and 3D |
| Audio Format | Up to PCM 8 channel, Dolby Digital, TrueHD,and DTS-HD Master Audio |
| Resolution | 800X600, 1024X768 , 1280X1024, 1366X768, 1920X1200, 480i, 720p, 1080i, 1080p and 3D |
| Input Connector (Transmitter) | 1x HDMI-A 19PIN Socket 1x 2.5mm DC Jack 1x 3.5mm Jack for IR Receiver |
| Output Connector (Transmitter) | 1x RJ45 Jack 1x 3.5mm Jack for IR Emitter |
| Input Connector (Receiver) | 1x RJ45 Jack 1x 3.5mm Jack for IR Receiver 1x 2.5mm DC Jack |
| Ouput Connector (Receiver) | 1x 3.5mm Jack for IR Emitter 1x HDMI-A 19PIN Socket |
| Other | |
| Power | External 5VDC 2A |
| Dimensions | External 0.9" H X 2.9" W X 3.7" D |
| Weight | 120g |
| Approvals | UL, CE, ROHS |
| Operating Temp. | +0 to +40° C (+32° to 104° F) |
| Storage Temp. | -20° to +60°C (-4° to +140° F) |
| Humidity | 10% to 85% (Non-condensing) |
The HDX-LXS is also known as the HDX-LX-S
