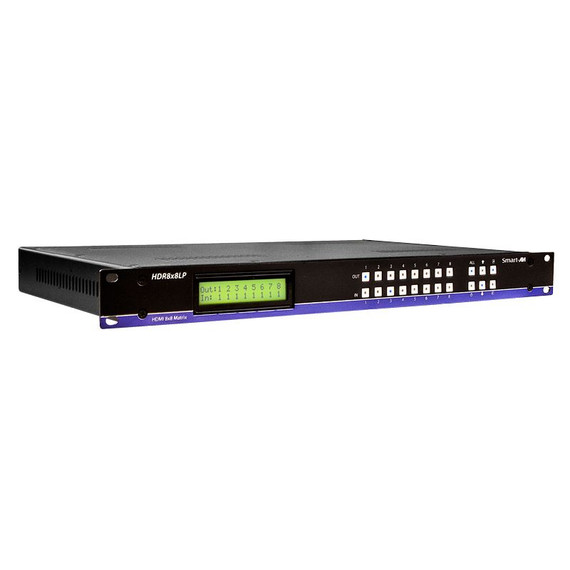

SmartAVI HDR 8X8 LP-IS
Product Code:
HDR8X8LP-IS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
1U HDMI 8x8 Router with internal network control
SmartAVI's non-blocking DVR 16X16 LP-IS digital video matrix switch provides an easy and dynamic approach to switching the DVI output from up to 16 computers, to up to 16 displays. The matrix configuration provides maximum flexibility, allowing switching between any digital video source and/or display. The DVR 16x16 LP-IS provides digital video output up to 30 feet and at resolutions up to 1920 x 1200. The switching can be controlled directly via the front panel, or remotely using RS-232 commands, IR, or TCP/IP (optional). The DVR16X16 LP-IS is controlled by Windows¨-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
Applications
- Wall Displays
- Digital Signage
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Security
- Point-of-Sale
Features
- Internal network control
- Sources can be routed independently to displays
- Supports 7.1 Digital Surround Sound Audio
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Delivers uncompressed digital video with zero signal loss
- Rack mountable
SmartAVI HDR 8x8 PRO Specifications
| Mechanical | |
| Height | 1.75 in. (4.44 cm) |
| Width | 19 in. (48.26 cm.) |
| Depth | 7 in. (17.78 cm.) |
| Weight | 4 lbs. |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p |
| TV Resolution | 480i |
| Input Interface | 8 HDMI Type A 19-pin female TMDS |
| Output Interface | 8 HDMI Type A 19-pin gemale TMDS |
| Input Cable Length | Up to 40 ft. |
| Output Cable Length | Up to 40 ft |
| Control | Internal Network Control |
